12.6V Li-Ion Battery Charger
XSG1262000

  • Technical Data
  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >88%
No load Input power <0.1W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 12.6V
Output voltage tolerance: 5%
Max charging current: 0~2A
Ripple and noise: <100mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full <0.2A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
12.6V Li-Ion Battery Charger-drawing
12.6V li-ion battery charger is widely used for intelligent transport vehicle charger, electric tool charger, electronic car charger, electric wheelchair charger, electric scooter charger, garden tool charger, robot charger, charger for energy storage products, medical product charger, charger for measuring tools, heating product charger, lighting charger, charger for unmanned aerial vehicle, charger for industrial equipment, military security charger, digital product charger, intelligent terminal charger, vacuum cleaner charger, sweeper car charger, golf cart charger, automatic serve machine charger, beach car charger, intelligent transport vehicle charger, balance car charger, charger for folding electric vehicle, lawn mower charger, mobile phone charger, self-balancing unicycle, beauty apparatus charger, electric motorcycle charger, smart helmet charger, flashlight charger, AGV charger, E-ATV charger and so on.

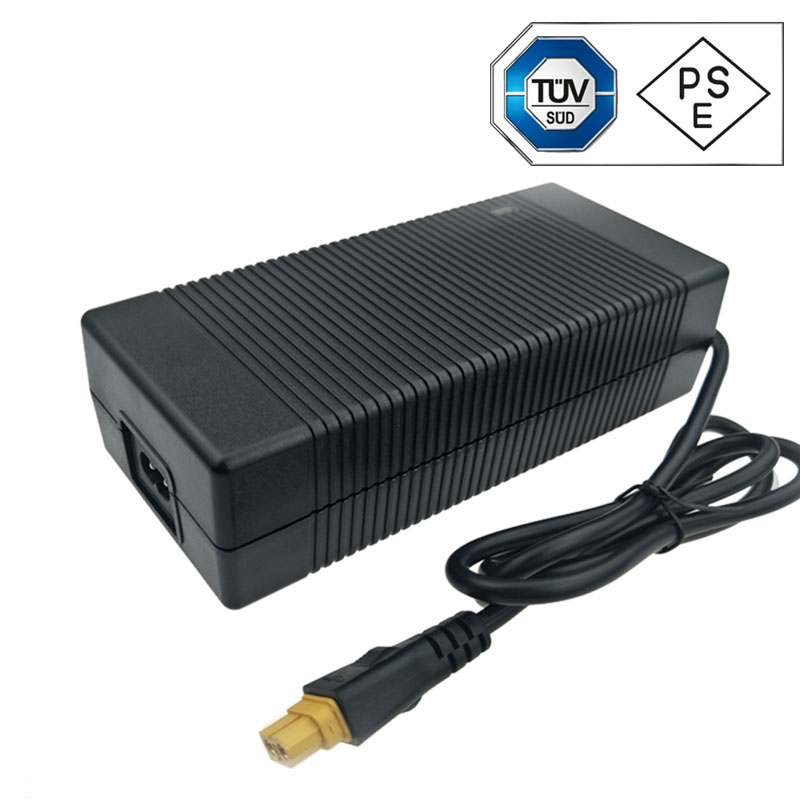

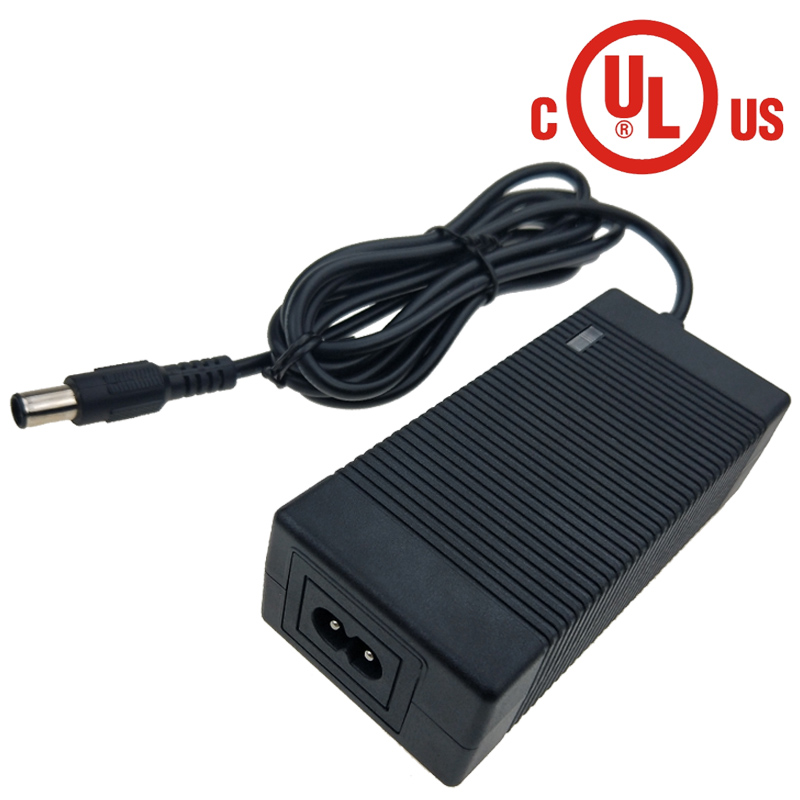

*3 cell lithium battery charger 12.6V, the charging current range is from 300ma to 11A, 12.6v 300ma battery charger,12.6v 1a battery charger, 12.6v 3a battery charger, 12.6v 5a battery charger, 12.6v 11a battery charger etc. Pls refer to related model list for details.

*Wall plug type: US plug , EU plug, AU plug, UK plug, CN plug, JP plug, and Korean Plug,Switzerland 3P, South Africa 3P,Italy 3P, Israel 3P,Argentina2P, Argentina3P, Brazil 3P are available.
*Desktop type: AC inlet  IEC-320-C8, IEC-320-C6 and IEC-320-C14 for option.
*DC jack: normal DC connector: 5.5*2.1,5.5*2.5,3.5*1.35,7.4*5.1,4.8*1.7,Customized DC connector: alligator clip, XLR connector, Air plug, Anderson, TX40/60, SAE connector etc.

*All 12.6v chargers meet safety standard IEC62368, IEC60065,IEC60335, IEC61558,IEC60950, and it is possible to get IEC60601, REC61347 approval if need.
*12.6v chargers are with various of certificates: UL, FCC,cUL, CE, TUV/GS, CB, PSE, KC, SAA ,C-TICK, RCM and we are capable to get more approvals, such as Indian BIS, Taiwan BSMI, Brazil INMETRO,   Argentina S-MARK, Israel SII, South Afria SABS. SASO,etc.
1PCS/BOX, 100BOX/CTN, CTN SIZE:460*295*330MM
0.18KG/BOX, TOTAL WEIGHT: 18KGS/CTN
12.6V Li-Ion Battery Charger-packing
