Li-Ion Battery Charger

Xinsuglobal also provide a kind of charger for the lithium-ion battery or LIB battery packs. LIBs is a type of rechargeable battery in which lithium ions move from the negative electrode to the positive electrode during discharge and back when charging. Since the light weight lithium-ion battery packs can provide the same voltage as lead-acid batteries, the trend is that the lithium-ion batteries are becoming a common replacement for the lead-acid batteries. Considering of this situation, our Xinsu global brand Li-ion battery chargers are developed and produced. The brand Xinsu global Lithium-ion battery pack chargers are very popular in the market when launching to the market. It become a very good replacement battery charger which have been widely used in home electronics, portable electronics, military, battery electric vehicle, golf carts, utility vehicles, and aerospace applications. The chargers with a 3-step charging mode, constant voltage, constant current and trickle charging. During the constant current phase, the charger applies a constant current to the battery at a steadily increasing voltage, until the voltage limit per cell is reached. During the constant voltage phase, the charger applies a voltage equal to the maximum cell voltage times the number of cells in series to the battery, as the current gradually declines towards 0, until the current is below a set threshold of about 3% of initial constant charge current. The trickle charging means charging a fully charged battery at a rate equal to its self-discharge rate, thus enabling the battery to remain at its fully charged level, this state is always when the battery is not loaded, as trickle charging will not keep a battery charged if the current is being drawn by a load. A battery under continuous float voltage charging is called float-charging too. The chargers we can provide with 3W-500W and have passed the international quality approvals like CE, UL, PSE, SAA, KC, GS, ETC. We can offer you output voltage at 73V max,  battery pack from 1cell to 16 cells at present. Our engineer is developing more big power chargers to meet your demands. Contact us to know more now.

DC Output

Battery Pack(series)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

Max Charging Voltage(V)

4.2

8.4

12.6

16.8

21

25.2

29.4

33.6

37.8

42

46.2

50.4

54.6

58.8

63

67.2

71.4

Voltage Tolerance

±5%

±5%

±5%

±5%

±5%

±5%

±5%

±5%

±5%

±4%

±4%

±4%

±4%

±3%

±3%

±3%

±3%

Max Charging Current(A)

11

11

11

10

9

8

7

6

5

5

4.5

4

3.75

3.5

3.25

3

2.75

Charging Mode

Smart Three Stage Charging Mode

LED Indicator

Red for Charging, Green for Charged full

DC connector

Normal DC connector: 5.5*2.1,5.5*2.5,3.5*1.35,7.4*5.1,4.8*1.7,Customized DC connector: alligator clip, XLR connector, Air plug, Anderson, TX40/60, SAE connector etc.


Features of Li-Ion Battery Charger

  • Used for 1-17 series li-ion battery pack.
  • Designed in USA, Made in China
  • Global Certificates.
  • Case Material: PC, GE brand
  • Fanless Design.
  • Fully sealed by ultrasonic welding.
  • Capacitor imported from Taiwan.
  • Desktop type and Wall plug type(support Interchangeable plug, EU, UK, US, AU, KR, JP, and CN Optional).
  • Protection: Over Load/Over Voltage/Over Current/Over Temp/Short-Circuit/Reverse Polarity/Anti-flow
  • LED indicator show work status, Red for Charging, Green for Charged full.
  • Comply With The Newest Safety Standard: IEC62368, IEC60950, IEC61558, IEC60335.
  • Customized Label and DC connector.
Specification Sheet Download

Certifications

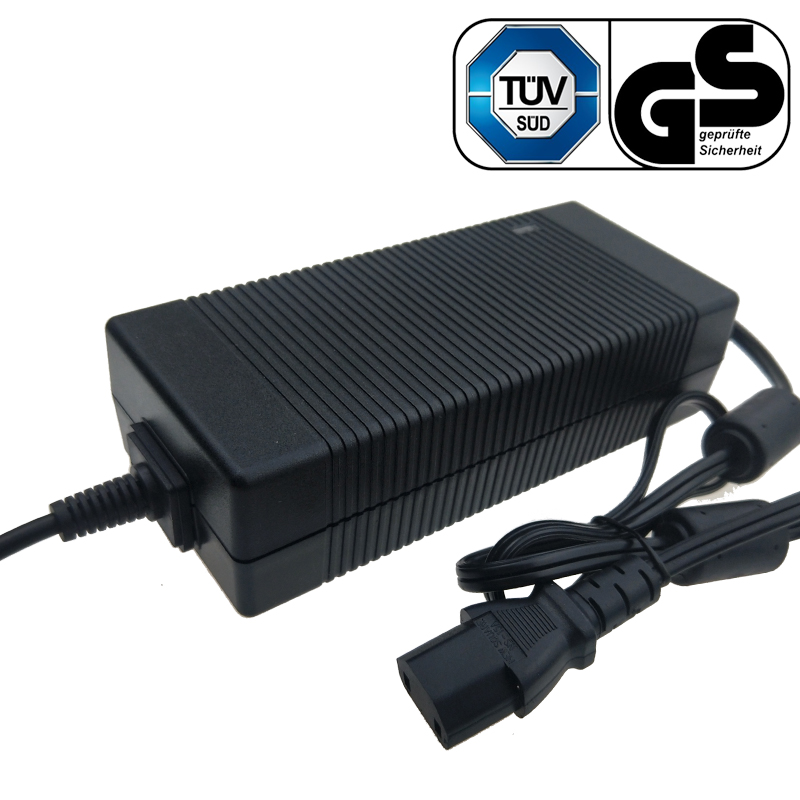

GS Download -Certificate No.: Z1A171194747010;Standard:EN62368(EN62368=EN60950+EN60065);
Verify website:https://www.tuev-sued.de/product-testing/certificates.
CE&LVD Download -Certificate No.: Z8A171194747011;Standard:EN62368(EN62368=EN60950+EN60065);
Verify website:https://www.tuev-sued.de/product-testing/certificates.

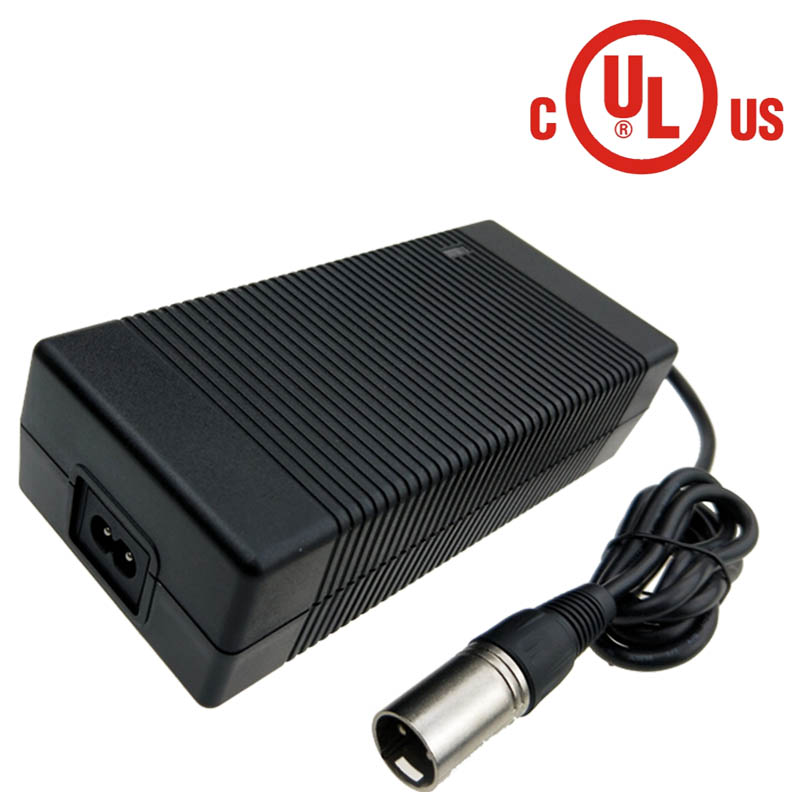

UL Download -Certificate No.:E481515;Standard:UL60950;
Verify website:www.UL.com
FCC Download -Report No.:4788121683-1;Standard:FCC Part 15 Subpart B.
Verify website:www.UL.com
CB Download -Certificate No.:SG PSB-OF-02586;Standard:IEC62368(EN62368=EN60950+EN60065);
Verify website:www.tuv.com https://www.tuev-sued.de/product-testing/certificates
CB Download-Certificate No.:SG PSB-OF-02560;Standard: IEC60950;
Verify website:https://www.tuev-sued.de/product-testing/certificates
KC Download -Certificate No.: HU10934-18002A & HU10934-18003A;Standard: K 60950-1 (2011-12);
Verify website:http://www.ktc.re.kr
C-TICK Download -Certificate No.: 17AE07019A 001;Standard:AS/NZS CISPR 32:2015;
Verify website:www.anci.com
SAA Download -Certificate No.: SAA-172984-EA;Standard:AS/NZS60950:2015;
Verify website:www.saaapprovals.com.au.
RCM Download -Certificate No.: POC17123654;Standard: AS/NZS 60950:2015 & SAA-172894-EA;
Verify website:https//equipment.erac.gov.au/Registration/EquipmentSearch.aspx?atn=public.
EMC TUV Download -Certificate No.:E8A 17 12 94747 013;Standard: EN55032:2015, EN55032:2012,
EN55024:2010/A1:2015, EN55024:2010, EN55020:2007/A12:2016,EN61000-3-2:2014, EN61000-3-3-2013.
Verify website:https://www.tuev-sued.de/product-testing/certificates.
