100W Desktop Adapter

100W series Desktop power adapter is designed in USA and produced in Shen Zhen factory, within global certifications, meeting the newest safety standard of IEC62368 and standard of IEC60950, IEC61558, IEC60065. 100W desktop adapter' s plastic case raw material is 94V-0 fireproof PC, Brand GE, and fully sealed by ultrasonic welding. Once the Xinsu global adapter was set up, we chose the components within heat resistance and thermal stability raw material to reduce the heat generation which is inside of the power supply, such as using the small power executive components like transistors. The structure of Xinsu global power adapter' s surface with fin type design increases the contact surface of the air circulation which contributes to power dissipation. The heat dissipation design ensures that the Xinsu global switching power supply can operate at lower temperature conditions, so as to maintain the performance, stability and improve Xinsu global adapter' s working life. Besides that, fan-less Design makes the adapter look small and delicate. Raw material Capacitor is imported from Taiwan. Protection will be ensure when the product is over Load, over Voltage, over Current, over Temperature and short-circuit. LED indicator shows the work status, Brand and Power Cord and DC Wire certified like UL, CE, PSE  can match our products. Customized Label and DC connector meet your different enquiry demands. If you have any enquiry demands from 3v to 58v, 0.3A to 9A based on 100W output, just feel free to contact our Xinsu global salesperson. We will do our best to support you here. Contact with us now!

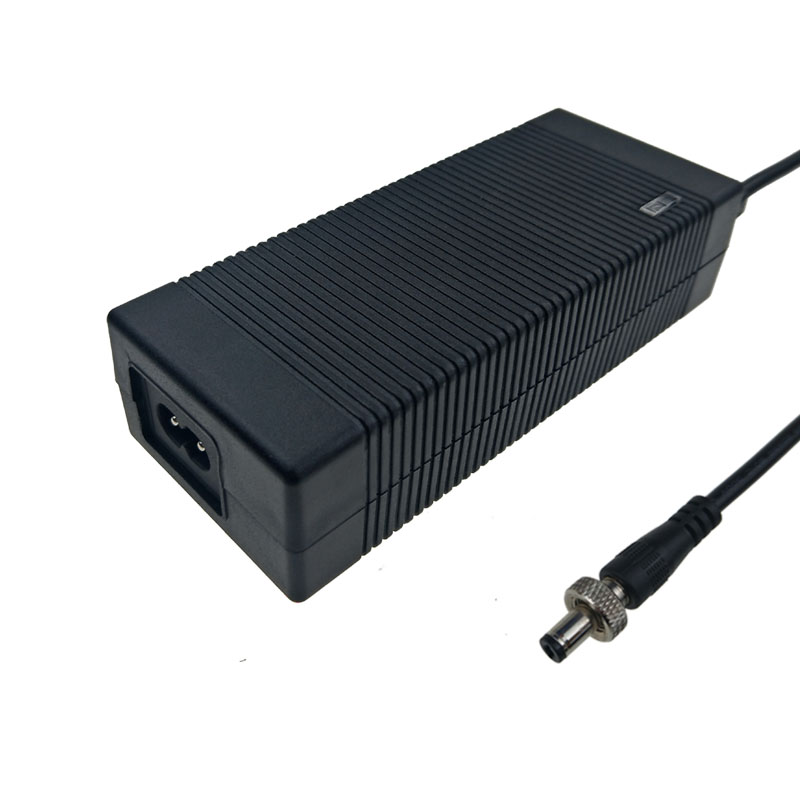

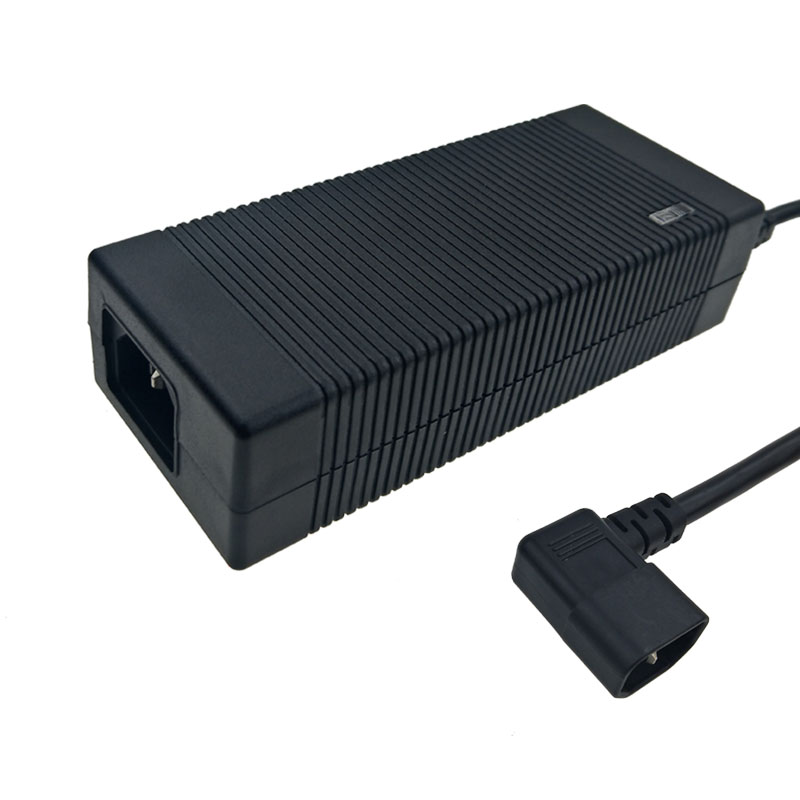

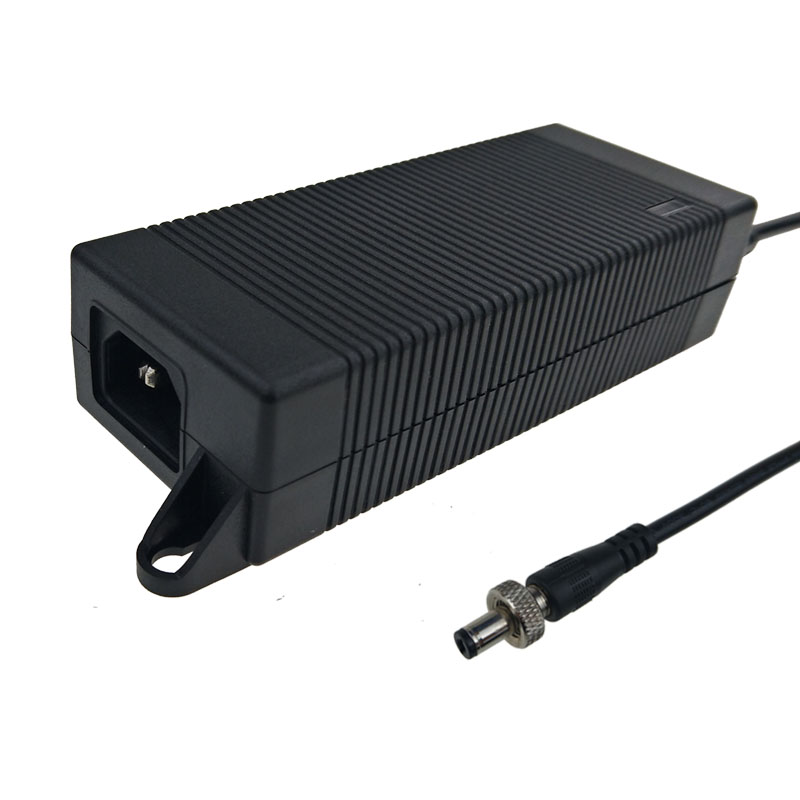

AC Inlet:100W IEC320 C8 AC Inlet:100W IEC320 C14 AC Inlet:100W IEC320 C6 AC inlet:100W Fixed Ac Input
Size:L137.61*W57*H34.5MM Size:L137.61*W57*H34.5MM Size:L137.61*W57*H34.5MM Size:L137.61*W57*H34.5MM
Drawing Download Drawing Download
Drawing Download Drawing Download

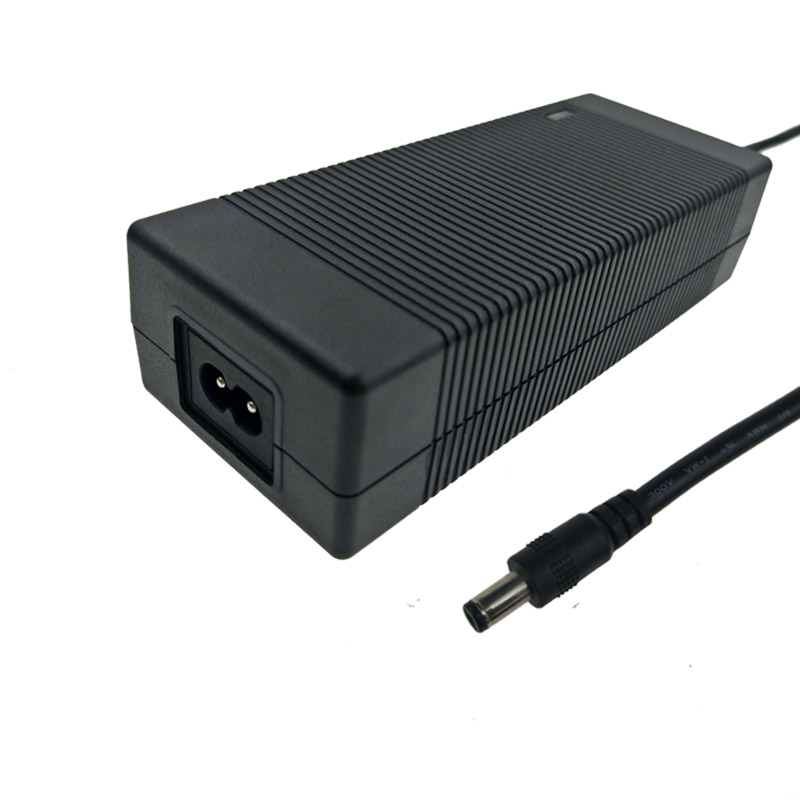

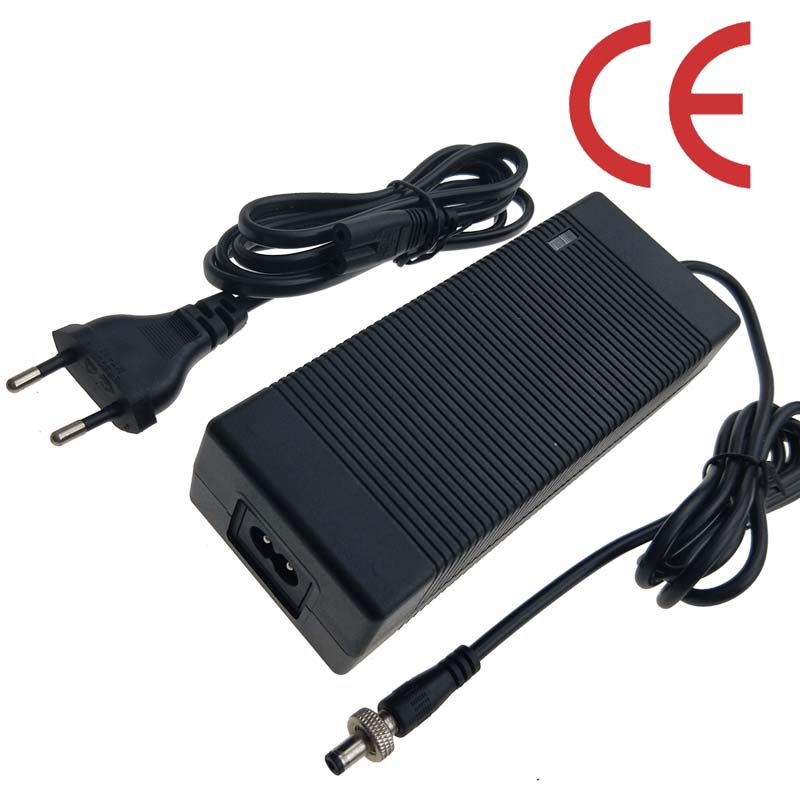

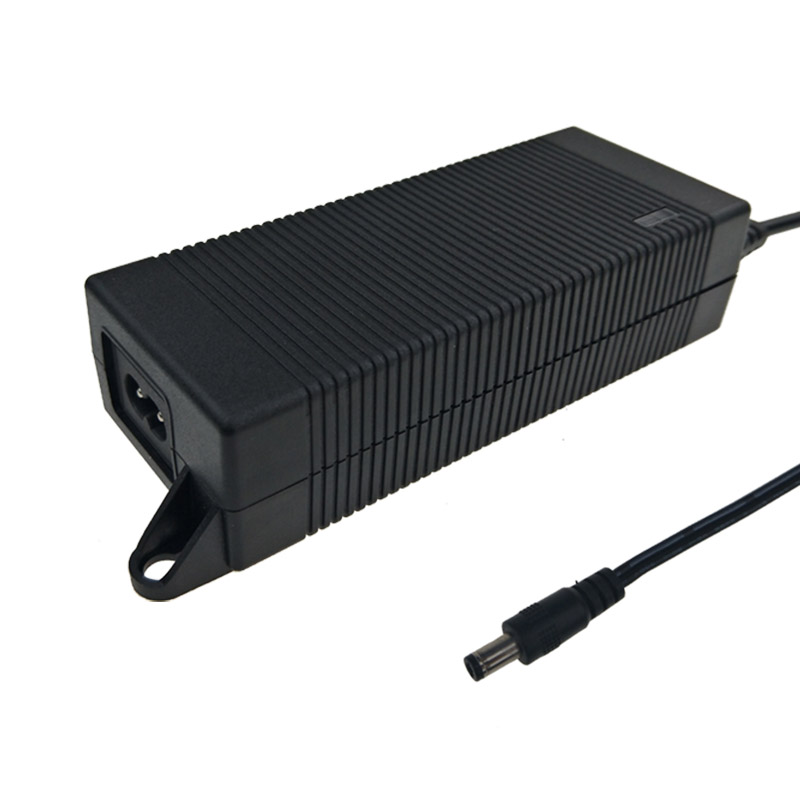

100w-iec320-c8

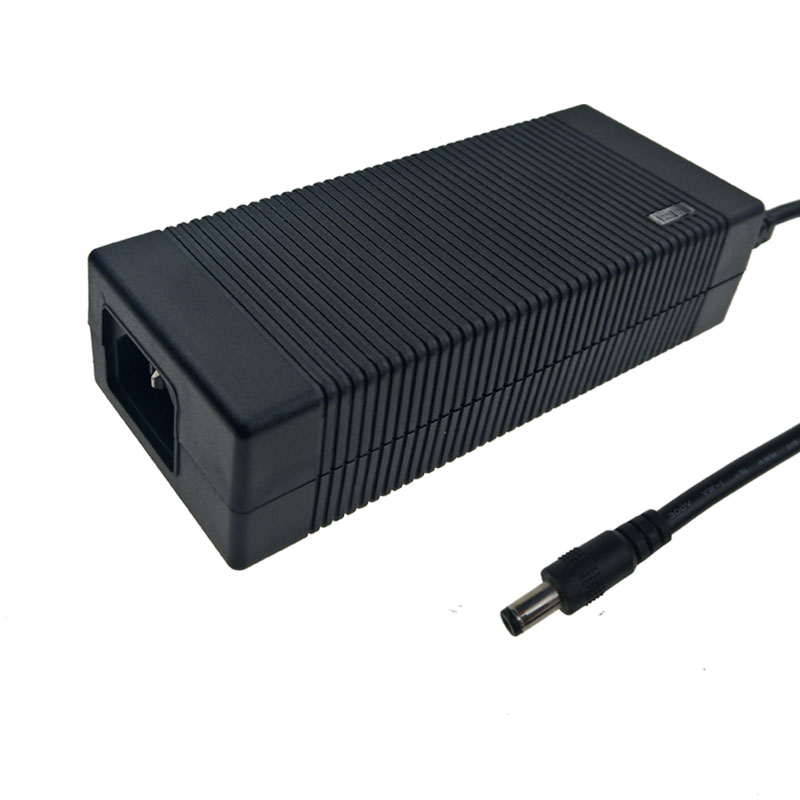

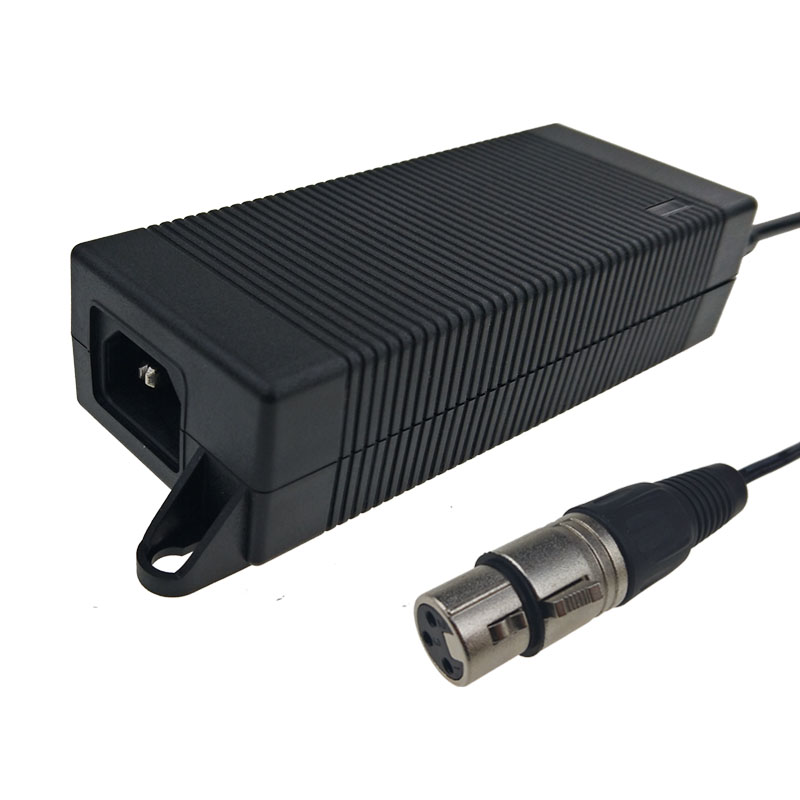

100w-iec320-c14
100w-iec320-c6
100w-fixed-ac-input

Features of 100W Series Desktop Adapter

  • Up to 100W
  • With Tap and without tap available
  • Designed in the USA, Made in China
  • Global Certificates.
  • Case Material: PC, GE brand
  • Fanless Design.
  • Active PFC
  • Fully sealed by ultrasonic welding.
  • Capacitor imported from Taiwan.
  • AC inlet: IEC320-C6, C8, C14 and Fixed inlet optional.
  • Protection: Over Load/Over Voltage/Over Current/Over Temp/Short-Circuit.
  • LED indicator show work status
  • Meet Energy Efficiency VI, Comply with CEC VI, DOE VI.
  • Comply With The Newest Safety Standard: UL62368, EN62368, IEC62368.
  • Brand Power Cord and DC Wire matched our products.
  • Customized Label and DC connector.
Specification Sheet Download

Certifications

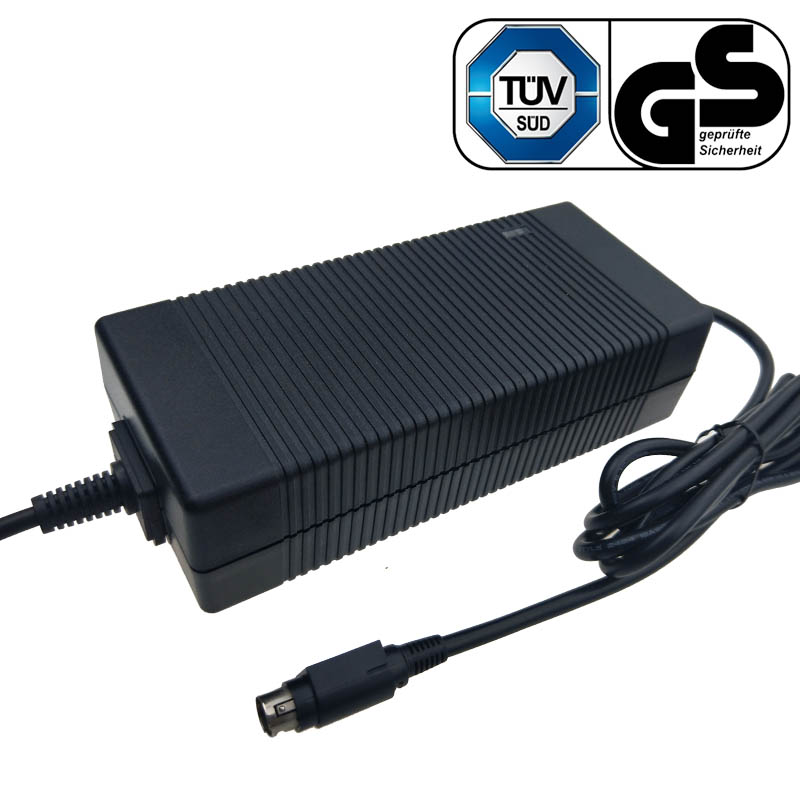

GS  Download- Certificate No.: Z1A171194747010; Standard:EN62368(EN62368=EN60950+EN60065);
Verify website: https://www.tuev-sued.de/product-testing/certificates.
CE&LVD Download - Certificate No.: Z8A171194747009; Standard:EN60950;
Verify website: https://www.tuev-sued.de/product-testing/certificates.

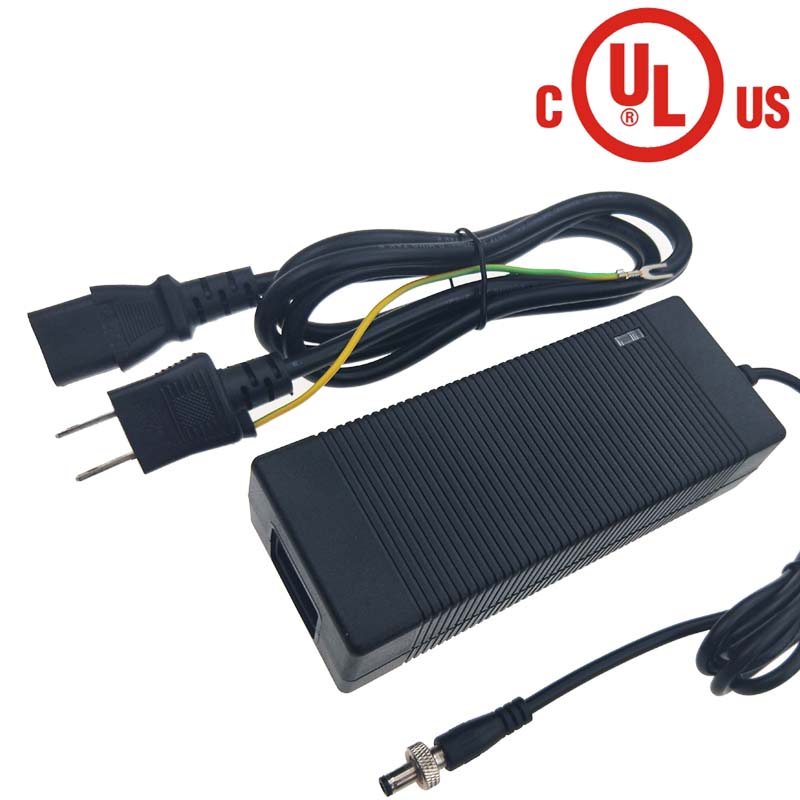

UL Download - Certificate No.:E481515; Standard:UL 60950 and CAN/CSA C22.2 NO.60950-1-07;
Verify website: www.UL.com
FCC Download - Report No.:4788121683-1;Standard:FCC Part 15 Subpart B.
Verify website: www.UL.com
CB  Download- Certificate No.: DK-691112-UL; Standard:IEC60950;
Verify website: https://www.ul.com.
C-TICK Download -Certificate No.: 17AE07019A 001;Standard: AS/NZS CISPR 32:2015;
Verify website: www.anci.com
SAA Download - Certificate No.: SAA-172984-EA;Standard: AS/NZS60950:2015;
Verify website: www.saaapprovals.com.au.
RCM Download - Certificate No.: POC17123654;Standard: AS/NZS 60950:2015 & SAA-172894-EA;
Verify website: https//equipment.erac.gov.au/Registration/EquipmentSearch.aspx?atn=public.
