44V 2A UL Listed Switching Power Supply
XSG4402000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data
  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 2.5A
Inrush current: 35A Max/240V
Efficiency: >88%
No load input power <0.21W
Leakage current: <0.25mA/240V
DC output Output voltage: 44V
Output voltage tolerance: 4%
Rated output current: 2A
Output current: 0～2A
Ripple and noise: <120mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years



44V 2A UL Listed Switching Power Supply
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG4400300 100～240 13.2 44 300
XSG4400400 100～240 17.6 44 400
XSG4400500 100～240 22.0 44 500
XSG4400600 100～240 26.4 44 600
XSG4400700 100～240 30.8 44 700
XSG4400800 100～240 35.2 44 800
XSG4400900 100～240 39.6 44 900
XSG4401000 100～240 44.0 44 1000
XSG4401250 100～240 55.0 44 1250
XSG4401450 100～240 63.8 44 1450
XSG4401500 100～240 66.0 44 1500
XSG4402000 100～240 88.0 44 2000
XSG4402500 100～240 110.0 44 2500
XSG4402700 100～240 118.8 44 2700
XSG4403000 100～240 132.0 44 3000
XSG4403500 100～240 154.0 44 3500
XSG4404000 100～240 176.0 44 4000
XSG4404500 100～240 198.0 44 4500

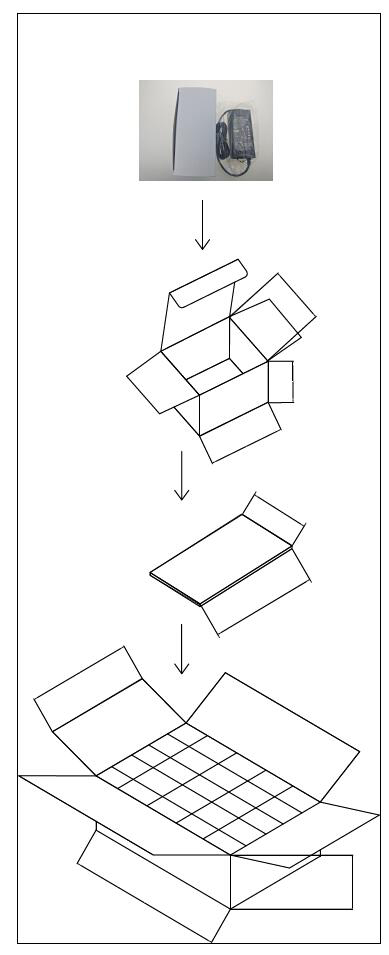

1PCS/BOX, 15BOX/CTN, CTN SIZE:450*235*295mm
0.39KG/BOX, TOTAL WEIGHT: 8.82KGS/CTN
