UK US EU USB Adapter 5V 2A
XSG0502000

  • Technical Data

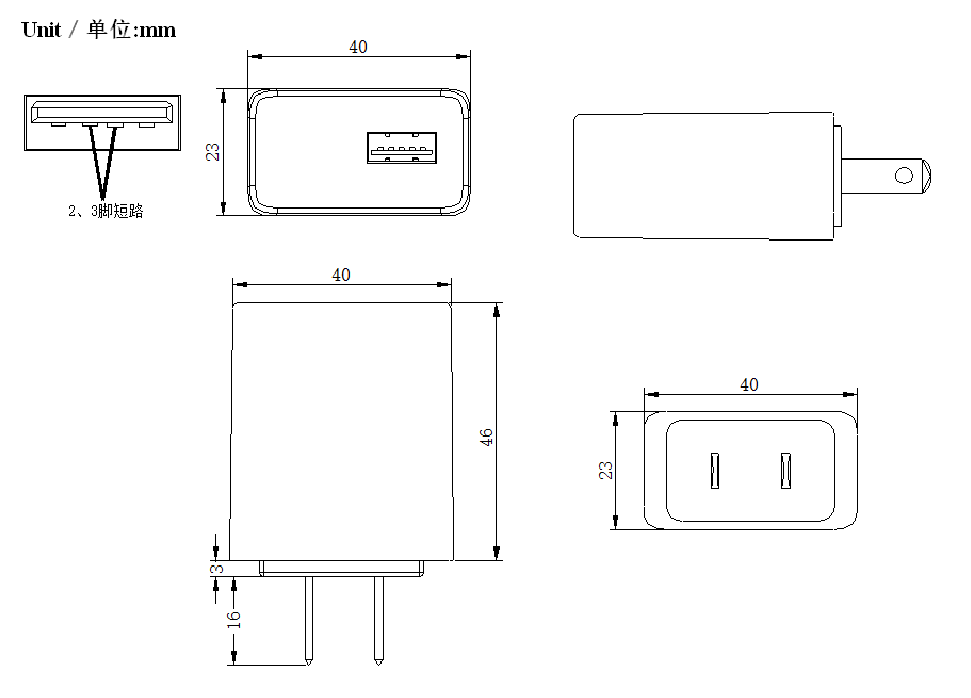

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >78%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 5V
Output voltage tolerance: 5%
Rated output current: 2A
Output current: 0~2A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
5V 2A usb Power adapter
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0500300 100~240 1.5 5 300
XSG0500400 100~240 2.0 5 400
XSG0500500 100~240 2.5 5 500
XSG0500600 100~240 3.0 5 600
XSG0500700 100~240 3.5 5 700
XSG0500800 100~240 4.0 5 800
XSG0500900 100~240 4.5 5 900
XSG0501000 100~240 5.0 5 1000
XSG0501200 100~240 6.0 5 1200
XSG0501500 100~240 7.5 5 1500
XSG0501750 100~240 8.8 5 1750
XSG0502000 100~240 10.0 5 2000
XSG0502100 100~240 10.5 5 2100
XSG0502500 100~240 12.5 5 2500
XSG0503000 100~240 15.0 5 3000
XSG0503500 100~240 17.5 5 3500
XSG0504000 100~240 20.0 5 4000
XSG0504500 100~240 22.5 5 4500
XSG0505000 100~240 25.0 5 5000
XSG0505500 100~240 27.5 5 5500
XSG0506000 100~240 30.0 5 6000
XSG0506500 100~240 32.5 5 6500
XSG0507000 100~240 35.0 5 7000
XSG0507500 100~240 37.5 5 7500
XSG0508000 100~240 40.0 5 8000
XSG0508500 100~240 42.5 5 8500
XSG0509000 100~240 45.0 5 9000
XSG0509500 100~240 47.5 5 9500
XSG05010000 100~240 50.0 5 10000
