Xinsu Global Electronic Co., Limited

6V 1.2A USB Power Adapter
XSG0601000

  • Technical Data

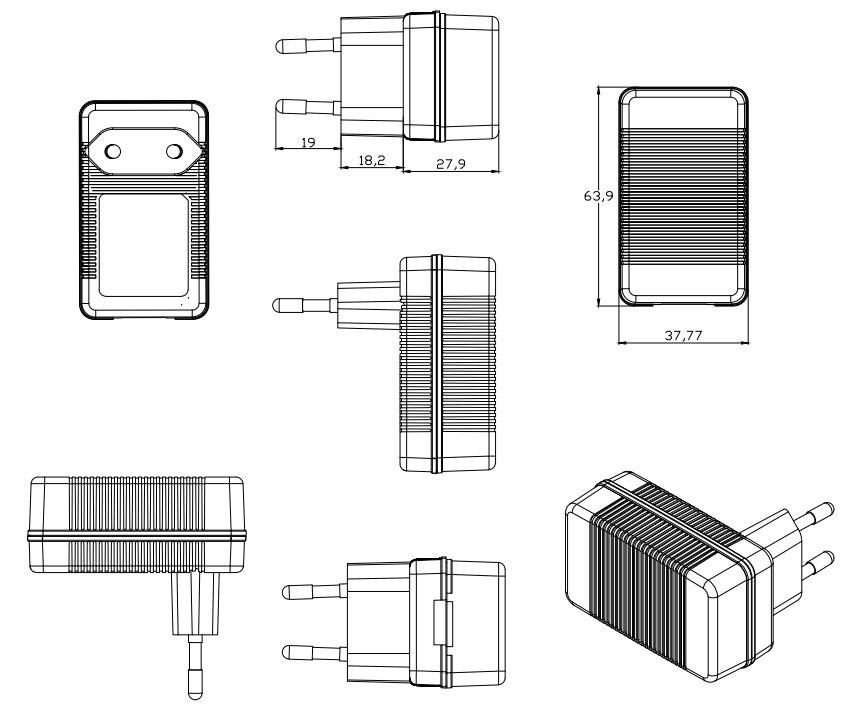

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >80%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 6V
Output voltage tolerance: 5%
Rated output current: 1.2A
Output current: 0~1.2A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
6v 1.2a Usb Power Adapter
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0600300 100~240 1.8 6 300
XSG0600400 100~240 2.4 6 400
XSG0600500 100~240 3.0 6 500
XSG0600600 100~240 3.6 6 600
XSG0600700 100~240 4.2 6 700
XSG0600800 100~240 4.8 6 800
XSG0600900 100~240 5.4 6 900
XSG0601000 100~240 6.0 6 1000
XSG0601500 100~240 9.0 6 1500
XSG0602000 100~240 12.0 6 2000
XSG0602500 100~240 15.0 6 2500
XSG0603000 100~240 18.0 6 3000
XSG0603500 100~240 21.0 6 3500
XSG0604000 100~240 24.0 6 4000
XSG0604500 100~240 27.0 6 4500
XSG0605000 100~240 30.0 6 5000
XSG0605500 100~240 33.0 6 5500
XSG0606000 100~240 36.0 6 6000
XSG0606500 100~240 39.0 6 6500
XSG0607000 100~240 42.0 6 7000
XSG0607500 100~240 45.0 6 7500
XSG0608000 100~240 48.0 6 8000
XSG0608500 100~240 51.0 6 8500
XSG0609000 100~240 54.0 6 9000
XSG0609500 100~240 57.0 6 9500
XSG06010000 100~240 60.0 6 10000
