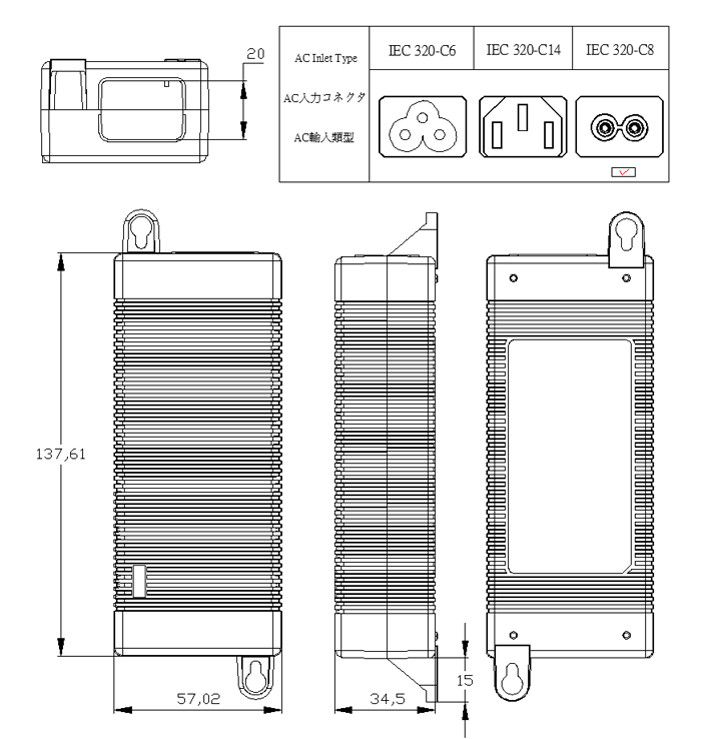

- Drawing
- Model List
- Packing
|
Electric Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
3A
|
|
Inrush current:
|
60A Max/240V
|
|
Efficiency:
|
>87%
|
|
No load input power
|
<0.5W
|
|
Leakage current:
|
<0.75mA/240V
|
|
DC output
|
Output voltage:
|
55V
|
|
Output voltage tolerance:
|
3%
|
|
Rated output current:
|
1.5A
|
|
Output current:
|
0～1.5A
|
|
Ripple and noise:
|
<250mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG5500300
|
100～240
|
16.5
|
55
|
300
|
|
XSG5500400
|
100～240
|
22.0
|
55
|
400
|
|
XSG5500500
|
100～240
|
27.5
|
55
|
500
|
|
XSG5500600
|
100～240
|
33.0
|
55
|
600
|
|
XSG5500700
|
100～240
|
38.5
|
55
|
700
|
|
XSG5500800
|
100～240
|
44.0
|
55
|
800
|
|
XSG5500900
|
100～240
|
49.5
|
55
|
900
|
|
XSG5501000
|
100～240
|
55.0
|
55
|
1000
|
|
XSG5501150
|
100～240
|
63.3
|
55
|
1150
|
|
XSG5501250
|
100～240
|
68.8
|
55
|
1250
|
|
XSG5501500
|
100～240
|
82.5
|
55
|
1500
|
|
XSG5502000
|
100～240
|
110.0
|
55
|
2000
|
|
XSG5502500
|
100～240
|
137.5
|
55
|
2500
|
|
XSG5502750
|
100～240
|
151.3
|
55
|
2750
|
|
XSG5503000
|
100～240
|
165.0
|
55
|
3000
|
|
XSG5503250
|
100～240
|
178.8
|
55
|
3250
|
|
XSG5503500
|
100～240
|
192.5
|
55
|
3500
|
|
XSG5503750
|
100～240
|
206.3
|
55
|
3750
|
