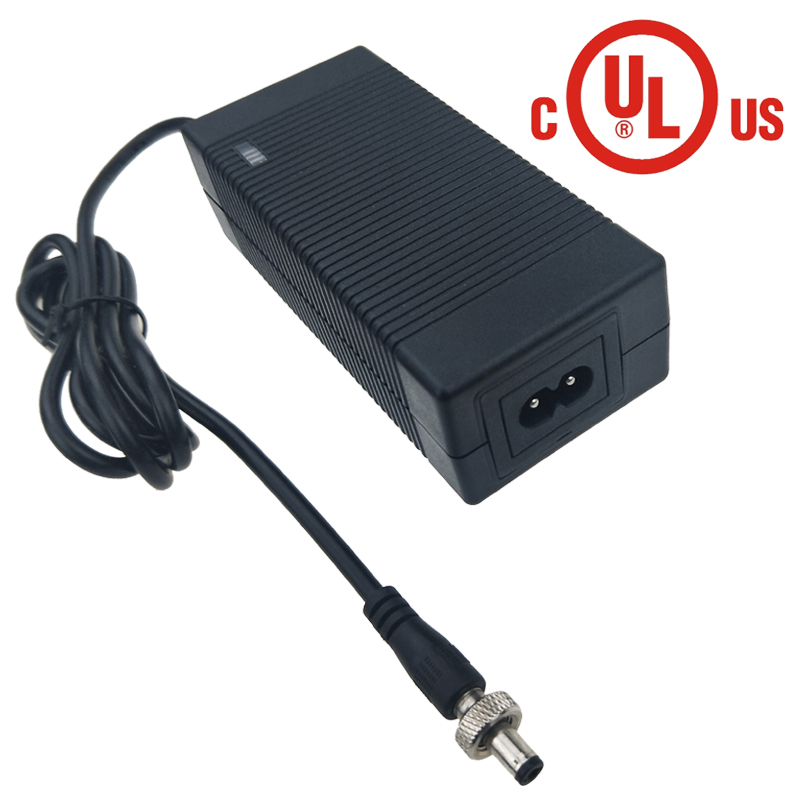

11V 5A lifePO4 battery charger with UL
XSG1105000

  • Technical Data

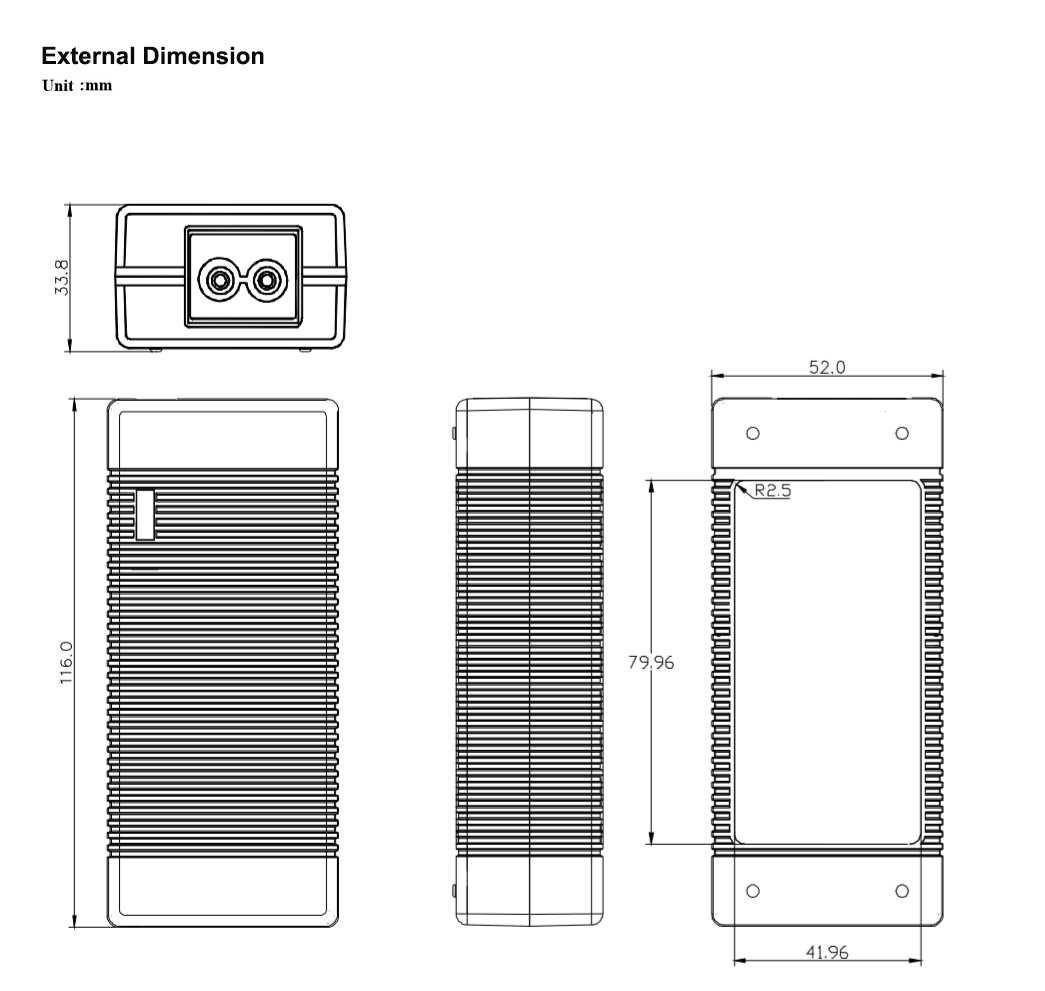

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 11V
Output voltage tolerance: 5%
Max charging current: 0~5A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.5A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
11V 5A lifePO4 battery charger with UL
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1100300 100~240 3.3 11 300
XSG1100400 100~240 4.4 11 400
XSG1100500 100~240 5.5 11 500
XSG1100600 100~240 6.6 11 600
XSG1100700 100~240 7.7 11 700
XSG1100800 100~240 8.8 11 800
XSG1100900 100~240 9.9 11 900
XSG1101000 100~240 11.0 11 1000
XSG1101500 100~240 16.5 11 1500
XSG1102000 100~240 22.0 11 2000
XSG1102500 100~240 27.5 11 2500
XSG1103000 100~240 33.0 11 3000
XSG1103500 100~240 38.5 11 3500
XSG1104000 100~240 44.0 11 4000
XSG1104500 100~240 49.5 11 4500
XSG1105000 100~240 55.0 11 5000
XSG1105500 100~240 60.5 11 5500
XSG1106000 100~240 66.0 11 6000
XSG1106500 100~240 71.5 11 6500
XSG1107000 100~240 77.0 11 7000
XSG1107500 100~240 82.5 11 7500
XSG1108000 100~240 88.0 11 8000
XSG1108500 100~240 93.5 11 8500
XSG1109000 100~240 99.0 11 9000
XSG1109500 100~240 104.5 11 9500
XSG11010000 100~240 110.0 11 10000
XSG11011000 100-240 121.0 11 11000
