15V 1A Ni-MH Battery Charger
XSG1501000

  • Technical Data

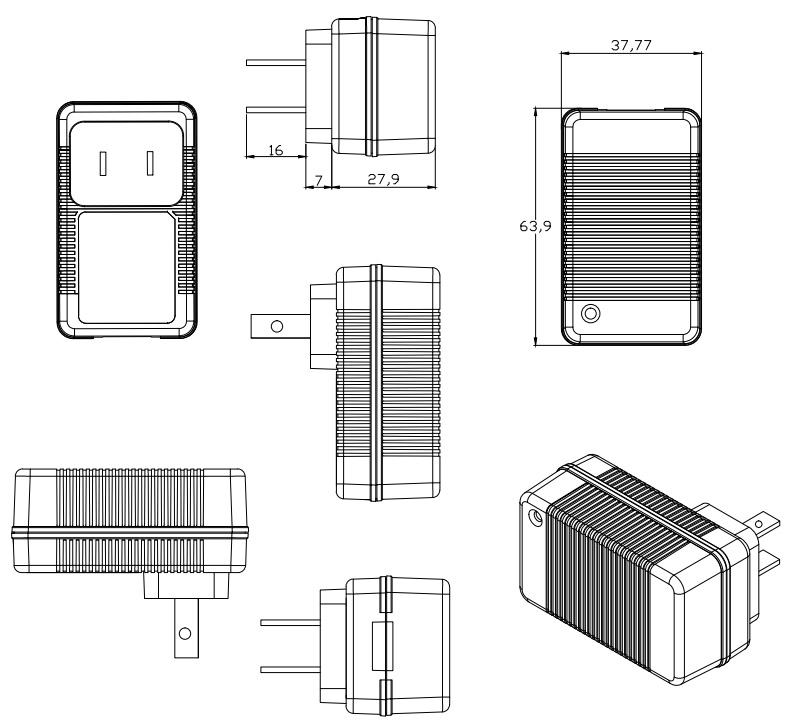

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >79%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 15V
Output voltage tolerance: 5%
Max charging current: 0~1A
Ripple and noise: <150mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.3A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
15V 1A Ni-MH Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1500300 100~240 4.5 15 300
XSG1500400 100~240 6.0 15 400
XSG1500500 100~240 7.5 15 500
XSG1500600 100~240 9.0 15 600
XSG1500700 100~240 10.5 15 700
XSG1500800 100~240 12.0 15 800
XSG1500900 100~240 13.5 15 900
XSG1501000 100~240 15.0 15 1000
XSG1501200 100~240 18.0 15 1200
XSG1501300 100~240 19.5 15 1300
XSG1501500 100~240 22.5 15 1500
XSG1501750 100~240 26.3 15 1750
XSG1502000 100~240 30.0 15 2000
XSG1502500 100~240 37.5 15 2500
XSG1503000 100~240 45.0 15 3000
XSG1503500 100~240 52.5 15 3500
XSG1504000 100~240 60.0 15 4000
XSG1504500 100~240 67.5 15 4500
XSG1505000 100~240 75.0 15 5000
XSG1505500 100~240 82.5 15 5500
XSG1506000 100~240 90.0 15 6000
XSG1506500 100~240 97.5 15 6500
XSG1507000 100~240 105.0 15 7000
XSG1507500 100~240 112.5 15 7500
XSG1508000 100~240 120.0 15 8000
XSG1508500 100~240 127.5 15 8500
XSG1509000 100~240 135.0 15 9000
XSG1509500 100~240 142.5 15 9500
XSG15010000 100~240 150.0 15 10000
