18650 Lithium Battery 67.2V 2.75A Unicycle Charger
XSG6722750

  • Technical Data

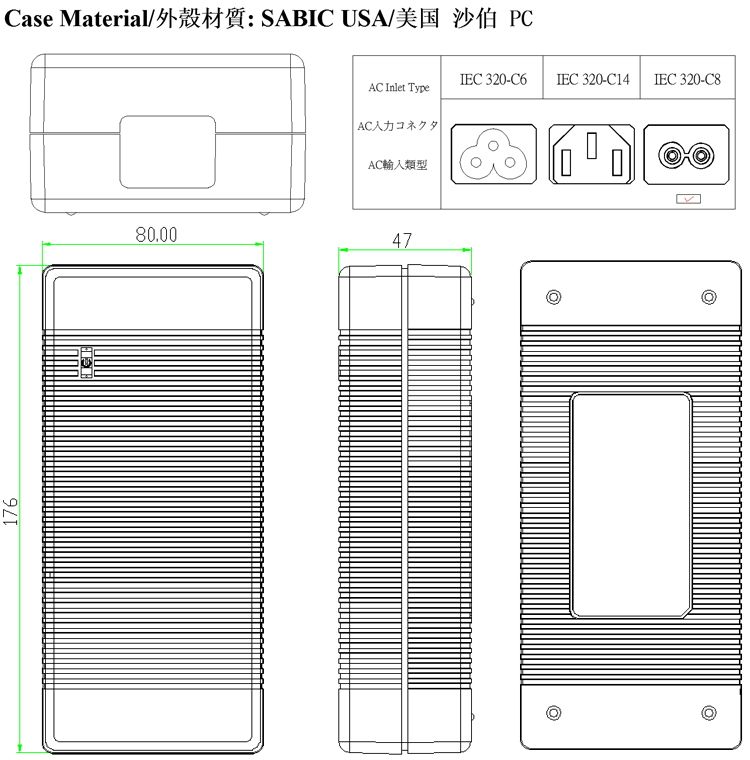

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 3A
Inrush current: 60A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 67.2V
Output voltage tolerance: 5%
Max charging current: 0~2.75A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.275A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
18650 Lithium Battery 67.2V 2.75A Unicycle Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG6720300 100~240 20.2 67.2 300
XSG6720400 100~240 26.9 67.2 400
XSG6720500 100~240 33.6 67.2 500
XSG6720600 100~240 40.3 67.2 600
XSG6720700 100~240 47.0 67.2 700
XSG6720800 100~240 53.8 67.2 800
XSG6720900 100~240 60.5 67.2 900
XSG6721000 100~240 67.2 67.2 1000
XSG6721250 100~240 84.0 67.2 1250
XSG6721500 100~240 100.8 67.2 1500
XSG6721750 100~240 117.6 67.2 1750
XSG6722000 100~240 134.4 67.2 2000
XSG6722250 100~240 151.2 67.2 2250
XSG6722500 100~240 168.0 67.2 2500
XSG6722750 100~240 184.8 67.2 2750
XSG6723000 100~240 201.6 67.2 3000
