Xinsu Global Electronic Co., Limited

18V 3A Ni-MH Battery Charger
XSG1803000

  • Technical Data

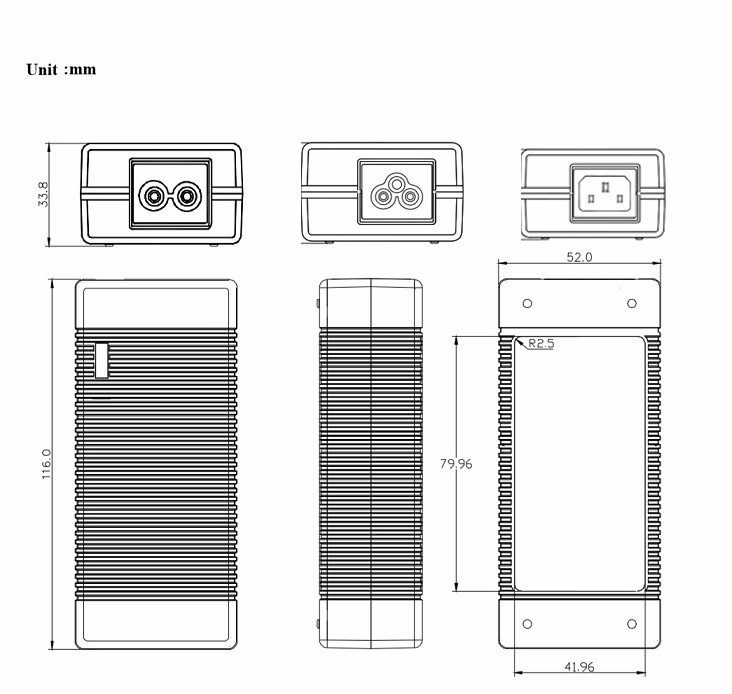

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 18V
Output voltage tolerance: 5%
Max charging current: 0~3A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 1A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
18V 3A Ni-MH Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1800300 100~240 5.4 18 300
XSG1800400 100~240 7.2 18 400
XSG1800500 100~240 9.0 18 500
XSG1800600 100~240 10.8 18 600
XSG1800700 100~240 12.6 18 700
XSG1800800 100~240 14.4 18 800
XSG1800900 100~240 16.2 18 900
XSG1801000 100~240 18.0 18 1000
XSG1801200 100~240 21.6 18 1200
XSG1801500 100~240 27.0 18 1500
XSG1801750 100~240 31.5 18 1750
XSG1802000 100~240 36.0 18 2000
XSG1802200 100~240 39.6 18 2200
XSG1802500 100~240 45.0 18 2500
XSG1803000 100~240 54.0 18 3000
XSG1803300 100~240 59.4 18 3300
XSG1803500 100~240 63.0 18 3500
XSG1804000 100~240 72.0 18 4000
XSG1804500 100~240 81.0 18 4500
XSG1805000 100~240 90.0 18 5000
XSG1805500 100~240 99.0 18 5500
XSG1806000 100~240 108.0 18 6000
XSG1806500 100~240 117.0 18 6500
XSG1807000 100~240 126.0 18 7000
XSG1807500 100~240 135.0 18 7500
XSG1808000 100~240 144.0 18 8000
XSG1808500 100~240 153.0 18 8500
XSG1809000 100~240 162.0 18 9000
XSG1809500 100~240 171.0 18 9500
