Xinsu Global Electronic Co., Limited

3.6V 2A lifePO4 battery charger with UL
XSG0362000

  • Technical Data

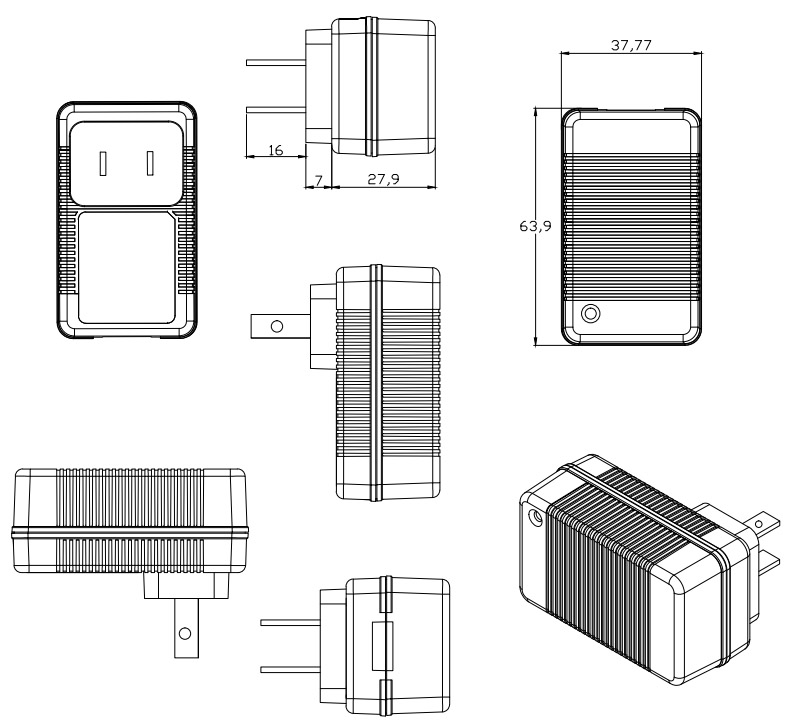

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >70.9%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 3.6V
Output voltage tolerance: 5%
Max charging current: 0~2A
Ripple and noise: <100mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.2A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
3.6V 2A lifePO4 battery charger with UL
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0360300 100~240 1.1 3.6 300
XSG0360400 100~240 1.4 3.6 400
XSG0360500 100~240 1.8 3.6 500
XSG0360600 100~240 2.2 3.6 600
XSG0360700 100~240 2.5 3.6 700
XSG0360800 100~240 2.9 3.6 800
XSG0360900 100~240 3.2 3.6 900
XSG0361000 100~240 3.6 3.6 1000
XSG0361500 100~240 5.4 3.6 1500
XSG0362000 100~240 7.2 3.6 2000
XSG0362500 100~240 9.0 3.6 2500
XSG0363000 100~240 10.8 3.6 3000
