Xinsu Global Electronic Co., Limited

37.8V 0.5A lithium battery charger
XSG3780500

  • Technical Data

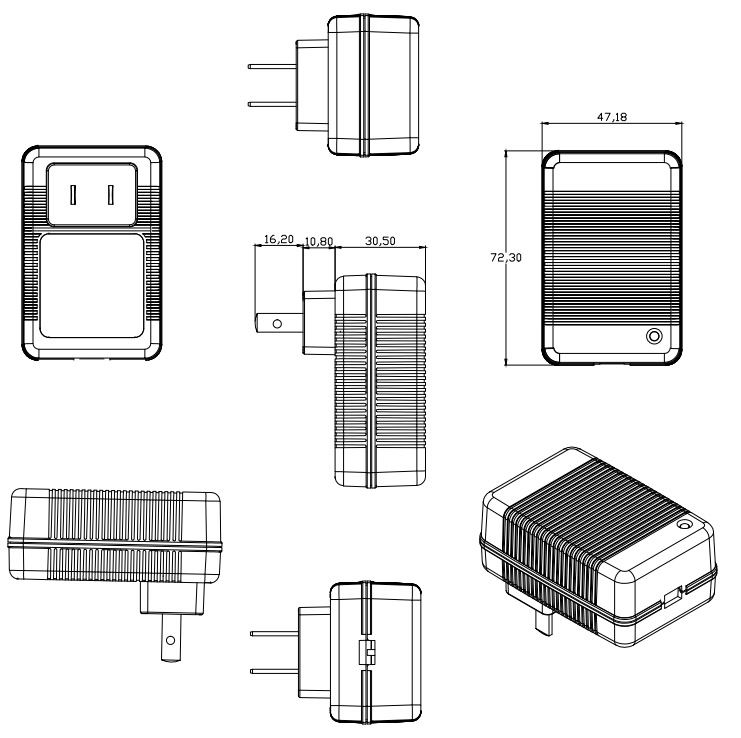

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90264Vac
Reted input voltage: 100240Vac
InputFrequency Range: 4762hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >80.5%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 37.8V
Output voltage tolerance: 5%
Max charging current: 00.5A
Ripple and noise: 100mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.1C
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45
Storage Temp: -30℃~+70
Relative Humidity: 10%90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN6100042
EN6100043
EN6100044
EN6100045
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
37.8V 0.5A lithium battery charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG3780300 100~240 11.3 37.8 300
XSG3780400 100~240 15.1 37.8 400
XSG3780500 100~240 18.9 37.8 500
XSG3780600 100~240 22.7 37.8 600
XSG3780700 100~240 26.5 37.8 700
XSG3780800 100~240 30.2 37.8 800
XSG3780900 100~240 34.0 37.8 900
XSG3781000 100~240 37.8 37.8 1000
XSG3781500 100~240 56.7 37.8 1500
XSG3781700 100~240 64.3 37.8 1700
XSG3782000 100~240 75.6 37.8 2000
XSG3782500 100~240 94.5 37.8 2500
XSG3783000 100~240 113.4 37.8 3000
XSG3783500 100~240 132.3 37.8 3500
XSG3784000 100~240 151.2 37.8 4000
XSG3784500 100~240 170.1 37.8 4500
XSG3785000 100~240 189.0 37.8 5000
