Xinsu Global Electronic Co., Limited

7.2V 2A Ni-MH battery charger
XSG0722000

  • Technical Data

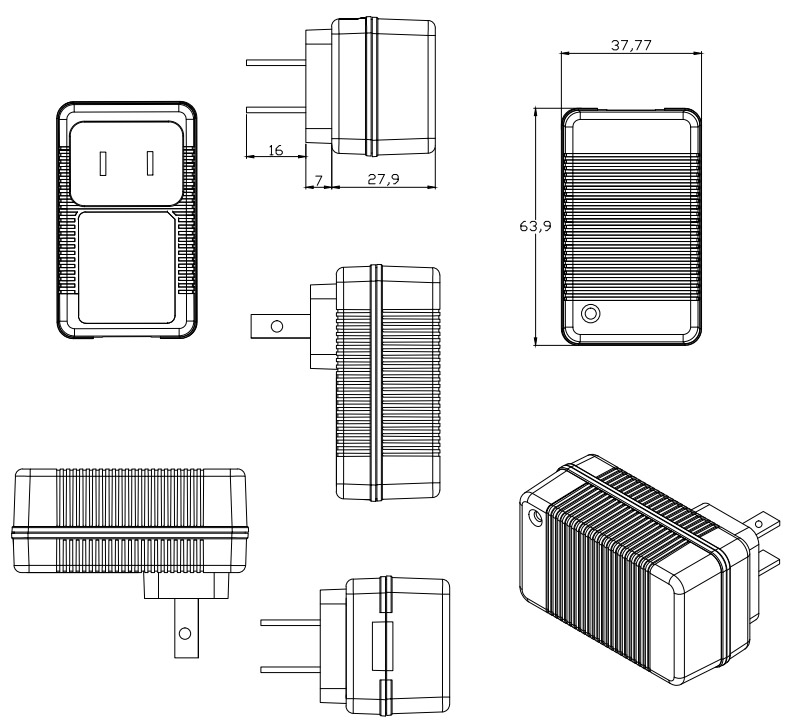

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >78.8%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 7.2V
Output voltage tolerance: 5%
Max charging current: 0~2A
Ripple and noise: <150mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.6A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
7.2V 2A Ni-MH battery charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0720300 100~240 2.2 7.2 300
XSG0720400 100~240 2.9 7.2 400
XSG0720500 100~240 3.6 7.2 500
XSG0720600 100~240 4.3 7.2 600
XSG0720700 100~240 5.0 7.2 700
XSG0720800 100~240 5.8 7.2 800
XSG0720900 100~240 6.5 7.2 900
XSG0721000 100~240 7.2 7.2 1000
XSG0721500 100~240 10.8 7.2 1500
XSG0722000 100~240 14.4 7.2 2000
XSG0722500 100~240 18.0 7.2 2500
XSG0723000 100~240 21.6 7.2 3000
XSG0723500 100~240 25.2 7.2 3500
XSG0724000 100~240 28.8 7.2 4000
XSG0724500 100~240 32.4 7.2 4500
XSG0725000 100~240 36.0 7.2 5000
XSG0725500 100~240 39.6 7.2 5500
XSG0726000 100~240 43.2 7.2 6000
XSG0726500 100~240 46.8 7.2 6500
XSG0727000 100~240 50.4 7.2 7000
XSG0727500 100~240 54.0 7.2 7500
XSG0728000 100~240 57.6 7.2 8000
XSG0728500 100~240 61.2 7.2 8500
XSG0729000 100~240 64.8 7.2 9000
XSG0729500 100~240 68.4 7.2 9500
XSG07210000 100~240 72.0 7.2 10000
