Xinsu Global Electronic Co., Limited

8.4V 4A Polymer Lithium Ion Battery Charger
XSG0844000

  • Technical Data

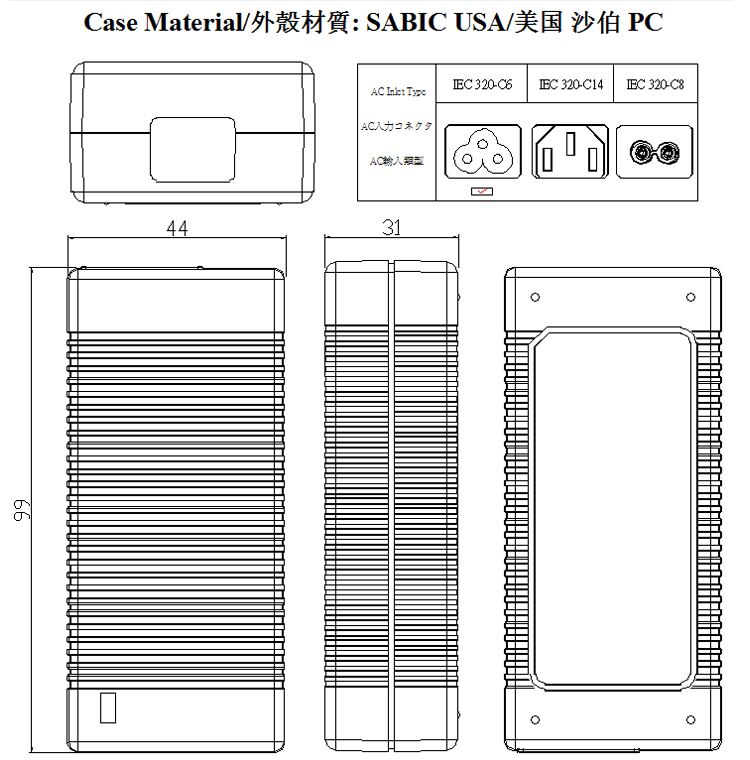

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >84.2%
No load Input power <0.3W
Leakage current: <0.75mA/240V
DC output Max charging voltage: 8.4V
Output voltage tolerance: 5%
Max charging current: 0~4A
Ripple and noise: <200mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.4A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
8.4V 4A Polymer Lithium Ion Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0840300 100~240 2.5 8.4 300
XSG0840400 100~240 3.4 8.4 400
XSG0840500 100~240 4.2 8.4 500
XSG0840600 100~240 5.0 8.4 600
XSG0840700 100~240 5.9 8.4 700
XSG0840800 100~240 6.7 8.4 800
XSG0840900 100~240 7.6 8.4 900
XSG0841000 100~240 8.4 8.4 1000
XSG0841200 100~240 10.1 8.4 1200
XSG0841500 100~240 12.6 8.4 1500
XSG0842000 100~240 16.8 8.4 2000
XSG0842500 100~240 21.0 8.4 2500
XSG0843000 100~240 25.2 8.4 3000
XSG0843500 100~240 29.4 8.4 3500
XSG0844000 100~240 33.6 8.4 4000
XSG0844500 100~240 37.8 8.4 4500
XSG0845000 100~240 42.0 8.4 5000
XSG0845500 100~240 46.2 8.4 5500
XSG0846000 100~240 50.4 8.4 6000
XSG0846500 100~240 54.6 8.4 6500
XSG0847000 100~240 58.8 8.4 7000
XSG0847500 100~240 63.0 8.4 7500
XSG0848000 100~240 67.2 8.4 8000
XSG0848500 100~240 71.4 8.4 8500
XSG0849000 100~240 75.6 8.4 9000
XSG0849500 100~240 79.8 8.4 9500
XSG08410000 100~240 84.0 8.4 10000
