Tester Lithium Battery Charger 25.2V 1A With Interchangeable Plug
XSG2521000WW

  • Technical Data

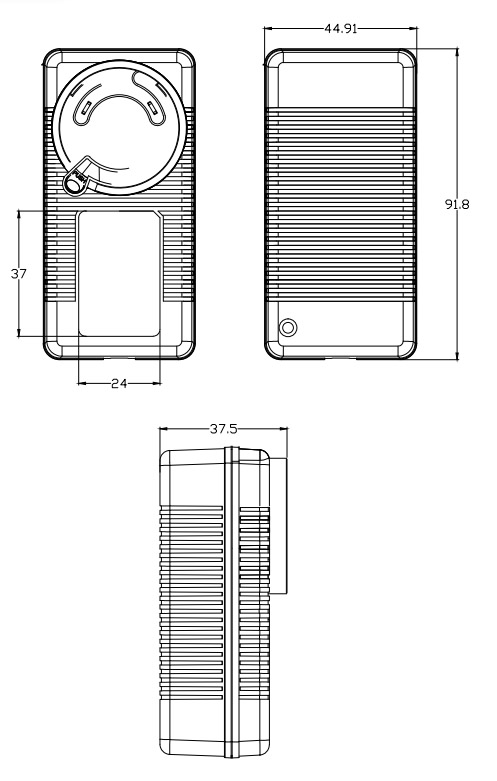

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: 82.4%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 25.2V
Output voltage tolerance: 5%
Max charging current: 0~1A
Ripple and noise: 100mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.1A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
Tester Lithium Battery Charger 25.2V 1A With Interchangeable Plug
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG2520300 100~240 7.6 25.2 300
XSG2520400 100~240 10.1 25.2 400
XSG2520500 100~240 12.6 25.2 500
XSG2520600 100~240 15.1 25.2 600
XSG2520700 100~240 17.6 25.2 700
XSG2520800 100~240 20.2 25.2 800
XSG2520900 100~240 22.7 25.2 900
XSG2521000 100~240 25.2 25.2 1000
XSG2521250 100~240 31.5 25.2 1250
XSG2521500 100~240 37.8 25.2 1500
XSG2522000 100~240 50.4 25.2 2000
XSG2522500 100~240 63.0 25.2 2500
XSG2523000 100~240 75.6 25.2 3000
XSG2523500 100~240 88.2 25.2 3500
XSG2524000 100~240 100.8 25.2 4000
XSG2524500 100~240 113.4 25.2 4500
XSG2525000 100~240 126.0 25.2 5000
XSG2525500 100-240 138.6 25.2 5500
XSG2526000 100~240 151.2 25.2 6000
XSG2526500 100~240 163.8 25.2 6500
XSG2527000 100~240 176.4 25.2 7000
XSG2527500 100~240 189.0 25.2 7500
XSG2528000 100~240 201.6 25.2 8000
