Desktop Type 33.6V 3A Smart Charger for 8S Lithium Ion Battery Pack Used for Incubator Electric Pump
XSG3363000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

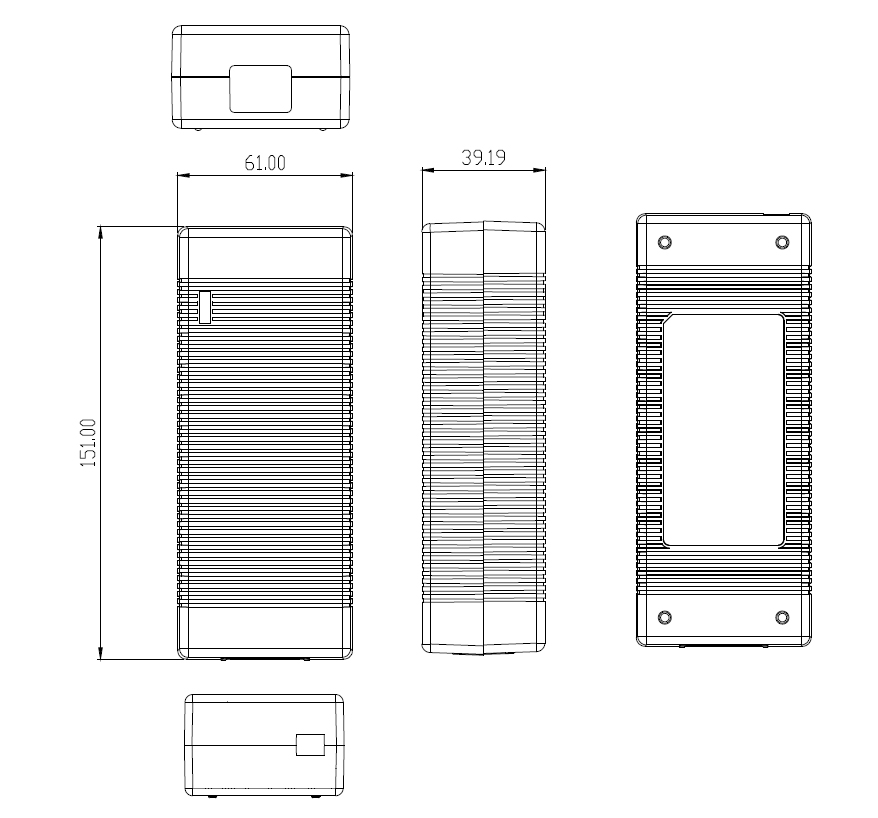

  • Drawing
  • Model List

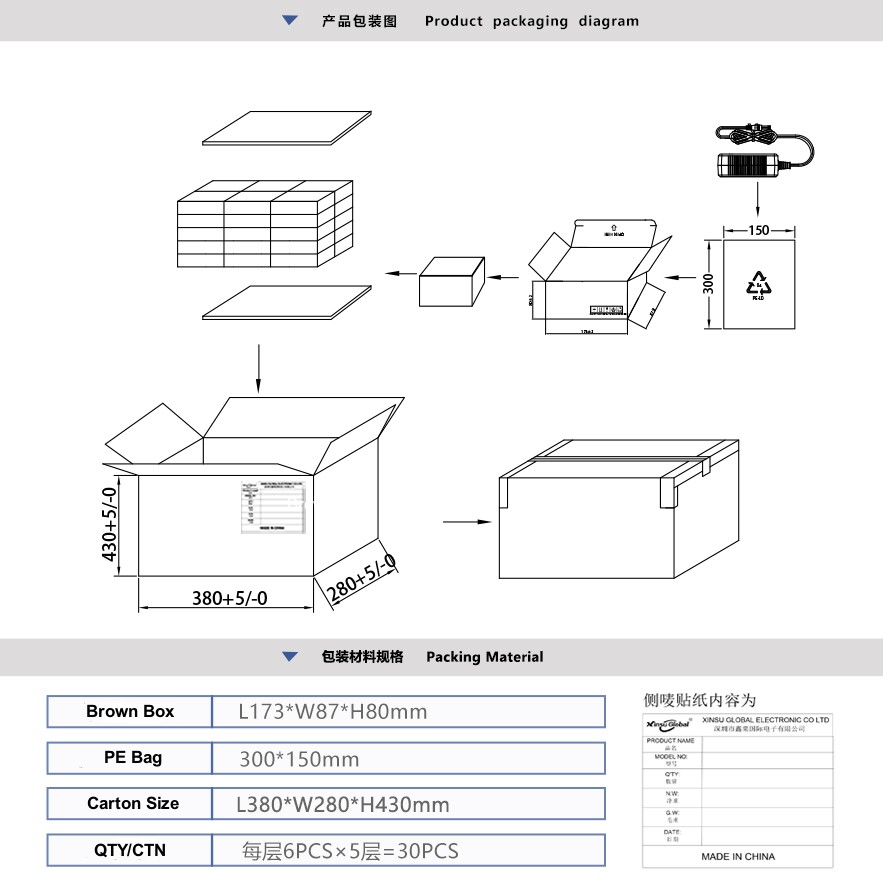

  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 3A
Inrush current: 60A Max/240V
Efficiency: >88%
No load Input power <0.21W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 33.6V
Output voltage tolerance: 5%
Max charging current: 0～3A
Ripple and noise: <180mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.3A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335,EN60335-2-29
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 2 years

MODEL

INPUT VAC

OUTPUT W

OUTPUT V

OUTPUT mA

XSG3360300

100～240

10.1

33.6

300

XSG3360400

100～240

13.4

33.6

400

XSG3360500

100～240

16.8

33.6

500

XSG3360600

100～240

20.2

33.6

600

XSG3360700

100～240

23.5

33.6

700

XSG3360800

100～240

26.9

33.6

800

XSG3360900

100～240

30.2

33.6

900

XSG3361000

100～240

33.6

33.6

1000

XSG3361500

100～240

50.4

33.6

1500

XSG3361900

100～240

63.8

33.6

1900

XSG3362000

100～240

67.2

33.6

2000

XSG3362500

100～240

84.0

33.6

2500

XSG3362750

100～240

92.4

33.6

2750

XSG3363000

100～240

100.8

33.6

3000

XSG3363250

100～240

109.2

33.6

3250

XSG3363500

100～240

117.6

33.6

3500

XSG3364000

100～240

134.4

33.6

4000

XSG3364500

100～240

151.2

33.6

4500

XSG3365000

100～240

168.0

33.6

5000

XSG3365500

100～240

184.8

33.6

5500

XSG3366000

100～240

201.6

33.6

6000
