UL approved 42v 1.5A battery charger for hoverboard
XSG4201500

  • Technical Data

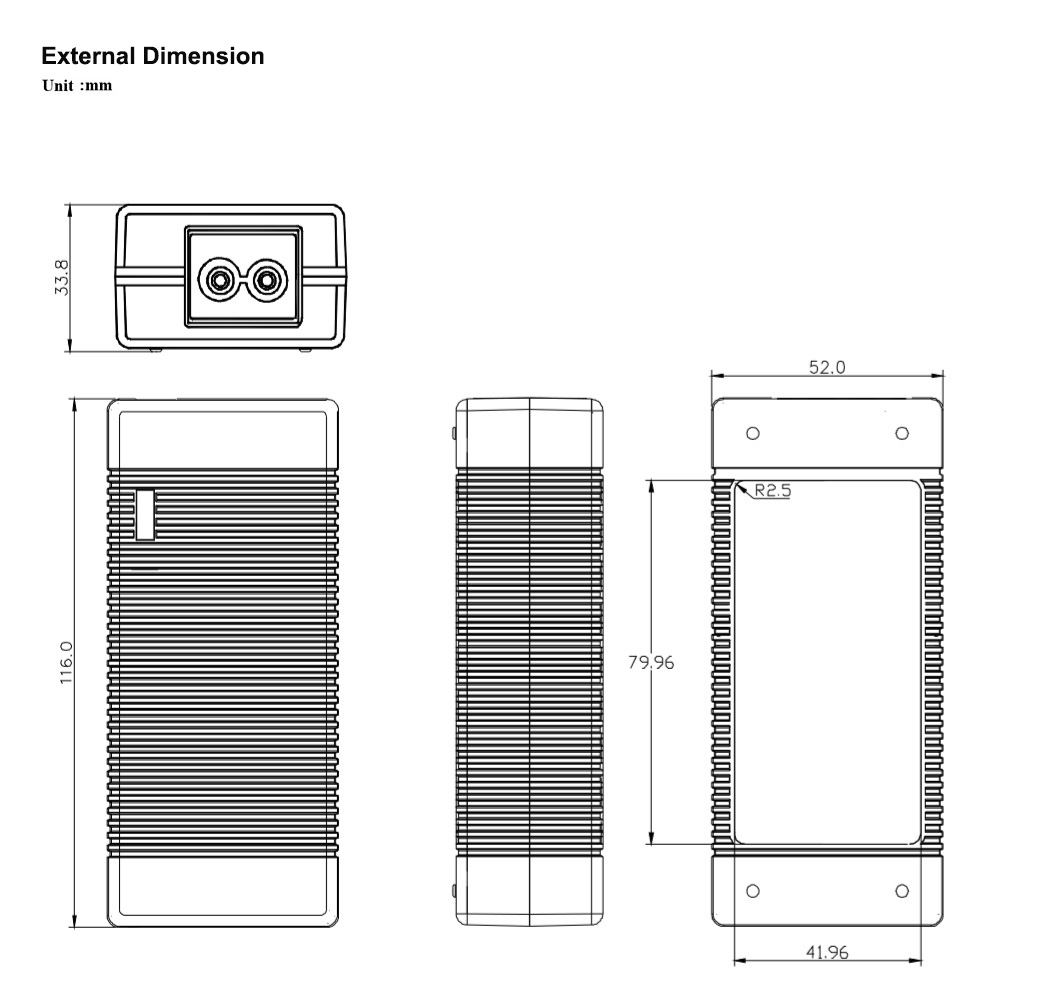

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 42V
Output voltage tolerance: 5%
Max charging current: 0~1.5A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.15A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
UL approved 42v 1.5A battery charger for hoverboard
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG4200300 100~240 12.6 42 300
XSG4200400 100~240 16.8 42 400
XSG4200500 100~240 21.0 42 500
XSG4200600 100~240 25.2 42 600
XSG4200700 100~240 29.4 42 700
XSG4200800 100~240 33.6 42 800
XSG4200900 100~240 37.8 42 900
XSG4201000 100~240 42.0 42 1000
XSG4201250 100~240 52.5 42 1250
XSG4201500 100~240 63.0 42 1500
XSG4201750 100~240 73.5 42 1750
XSG4202000 100~240 84.0 42 2000
XSG4202250 100~240 94.5 42 2250
XSG4202500 100~240 105.0 42 2500
XSG4203000 100~240 126.0 42 3000
XSG4203500 100~240 147.0 42 3500
XSG4204000 100~240 168.0 42 4000
XSG4204500 100~240 189.0 42 4500
XSG4205000 100~240 210.0 42 5000
