UL62368-1 Approved 33.6V 4A Lithium Battery Charger
XSG3364000

  • Technical Data

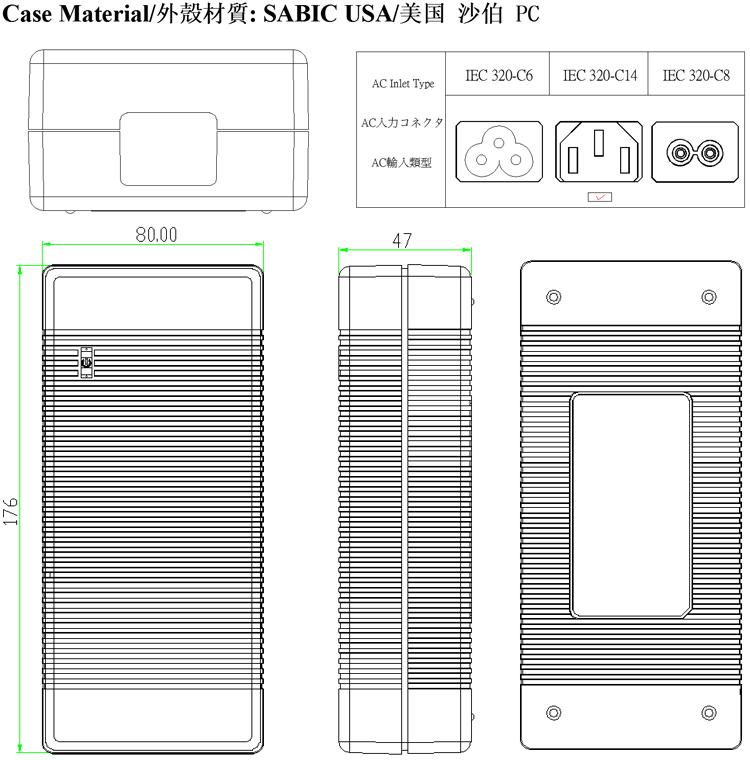

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 3A
Inrush current: 60A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.75mA/240V
DC output Max charging voltage: 33.6V
Output voltage tolerance: 5%
Max charging current: 0~4A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.4A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
UL62368-1 Approved 33.6V 4A Lithium Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG3360300 100~240 10.1 33.6 300
XSG3360400 100~240 13.4 33.6 400
XSG3360500 100~240 16.8 33.6 500
XSG3360600 100~240 20.2 33.6 600
XSG3360700 100~240 23.5 33.6 700
XSG3360800 100~240 26.9 33.6 800
XSG3360900 100~240 30.2 33.6 900
XSG3361000 100~240 33.6 33.6 1000
XSG3361500 100~240 50.4 33.6 1500
XSG3361800
100~240
60.5 33.6 1800
XSG3361900 100~240 63.8 33.6 1900
XSG3362000 100~240 67.2 33.6 2000
XSG3362500 100~240 84.0 33.6 2500
XSG3362750 100~240 92.4 33.6 2750
XSG3363000 100~240 100.8 33.6 3000
XSG3363250 100~240 109.2 33.6 3250
XSG3363500 100~240 117.6 33.6 3500
XSG3364000 100~240 134.4 33.6 4000
XSG3364500 100~240 151.2 33.6 4500
XSG3365000 100~240 168.0 33.6 5000
XSG3365500 100~240 184.8 33.6 5500
XSG3366000 100~240 201.6 33.6 6000
