Vacumm Cleaner Use 7.3V 1.5A Lifepo4 Battery Charger
XSG0731500WW

  • Technical Data

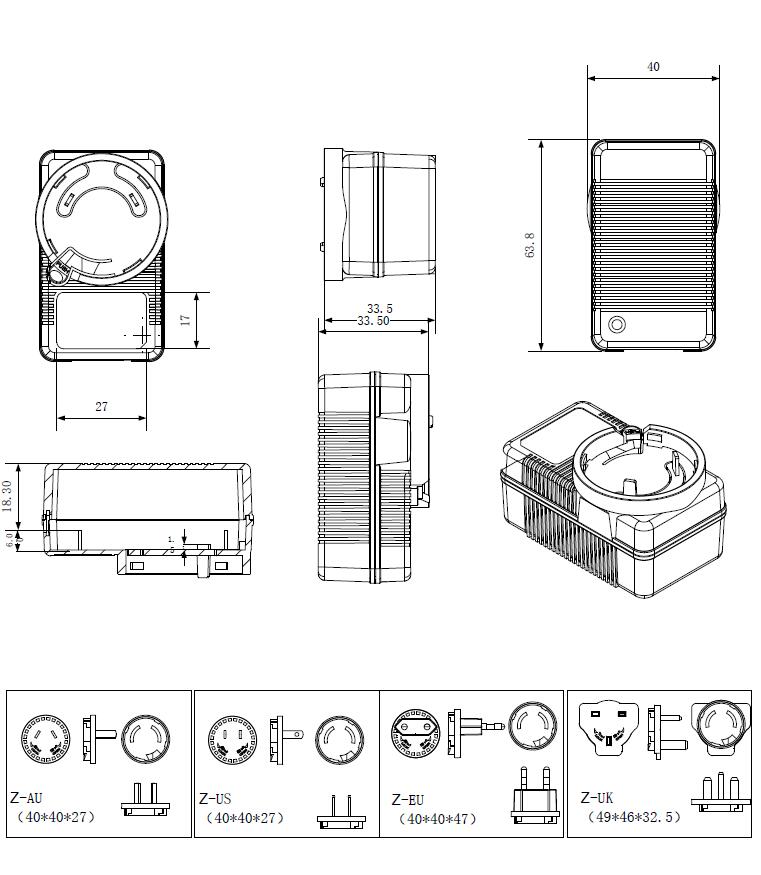

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >77.2%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 7.3V
Output voltage tolerance: 5%
Max charging current: 0~1.5A
Ripple and noise: <100mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.15A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
Vacumm Cleaner Use 7.3V 1.5A Lifepo4 Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0730300 100-240 2.2 7.3 300
XSG0730400 100-240 2.9 7.3 400
XSG0730500 100-240 3.7 7.3 500
XSG0730600 100-240 4.4 7.3 600
XSG0730700 100-240 5.1 7.3 700
XSG0730800 100-240 5.8 7.3 800
XSG0730900 100-240 6.6 7.3 900
XSG0731000 100-240 7.3 7.3 1000
XSG0731500 100-240 11.0 7.3 1500
XSG0732000 100-240 14.6 7.3 2000
XSG0732500 100-240 18.3 7.3 2500
XSG0733000 100-240 21.9 7.3 3000
XSG0733500 100-240 25.6 7.3 3500
XSG0734000 100-240 29.2 7.3 4000
XSG0734500 100-240 32.9 7.3 4500
XSG0735000 100-240 36.5 7.3 5000
XSG0735500 100-240 40.2 7.3 5500
XSG0736000 100-240 43.8 7.3 6000
XSG0736500 100-240 47.5 7.3 6500
XSG0737000 100-240 51.1 7.3 7000
XSG0737500 100-240 54.8 7.3 7500
XSG0738000 100-240 58.4 7.3 8000
XSG0738500 100-240 62.1 7.3 8500
XSG0739000 100-240 65.7 7.3 9000
XSG0739500 100-240 69.4 7.3 9500
XSG07310000 100-240 73.0 7.3 10000
