21V 2.5A ROHS AC ADAPTER
XSG2102500

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

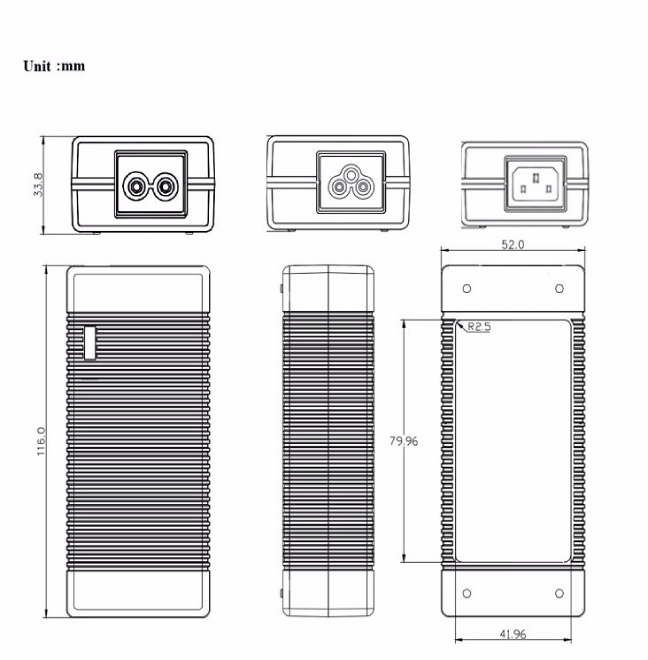

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >88%
No load input power <0.21W
Leakage current: <0.25mA/240V
DC output Output voltage: 21V
Output voltage tolerance: 5%
Rated output current: 2.5A
Output current: 0～2.5A
Ripple and noise: <100mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
21V 2.5A ROHS AC ADAPTER
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG2100300 100～240 6.3 21 300
XSG2100400 100～240 8.4 21 400
XSG2100500 100～240 10.5 21 500
XSG2100600 100～240 12.6 21 600
XSG2100700 100～240 14.7 21 700
XSG2100800 100～240 16.8 21 800
XSG2100900 100～240 18.9 21 900
XSG2101000 100～240 21.0 21 1000
XSG2101200 100～240 25.2 21 1200
XSG2101500 100～240 31.5 21 1500
XSG2101700 100～240 35.7 21 1700
XSG2102000 100～240 42.0 21 2000
XSG2102200 100～240 46.2 21 2200
XSG2102500 100～240 52.5 21 2500
XSG2103000 100～240 63.0 21 3000
XSG2103500 100～240 73.5 21 3500
XSG2104000 100～240 84.0 21 4000
XSG2104500 100～240 94.5 21 4500
XSG2105000 100～240 105.0 21 5000
XSG2105500 100-240 115.5 21 5500
XSG2106000 100～240 126.0 21 6000
XSG2106500 100～240 136.5 21 6500
XSG2107000 100～240 147.0 21 7000
XSG2107500 100～240 157.5 21 7500
XSG2108000 100～240 168.0 21 8000
XSG2108500 100～240 178.5 21 8500
XSG2109000 100～240 189.0 21 9000

1PCS/BOX, 50BOX/CTN, CTN SIZE:430*380*350mm
0.25KG/BOX, TOTAL WEIGHT: 18KGS/CTN
