UL/IEC 62368 AC Adaptor 24V 1.5A Switching Adapter
XSG2401500

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

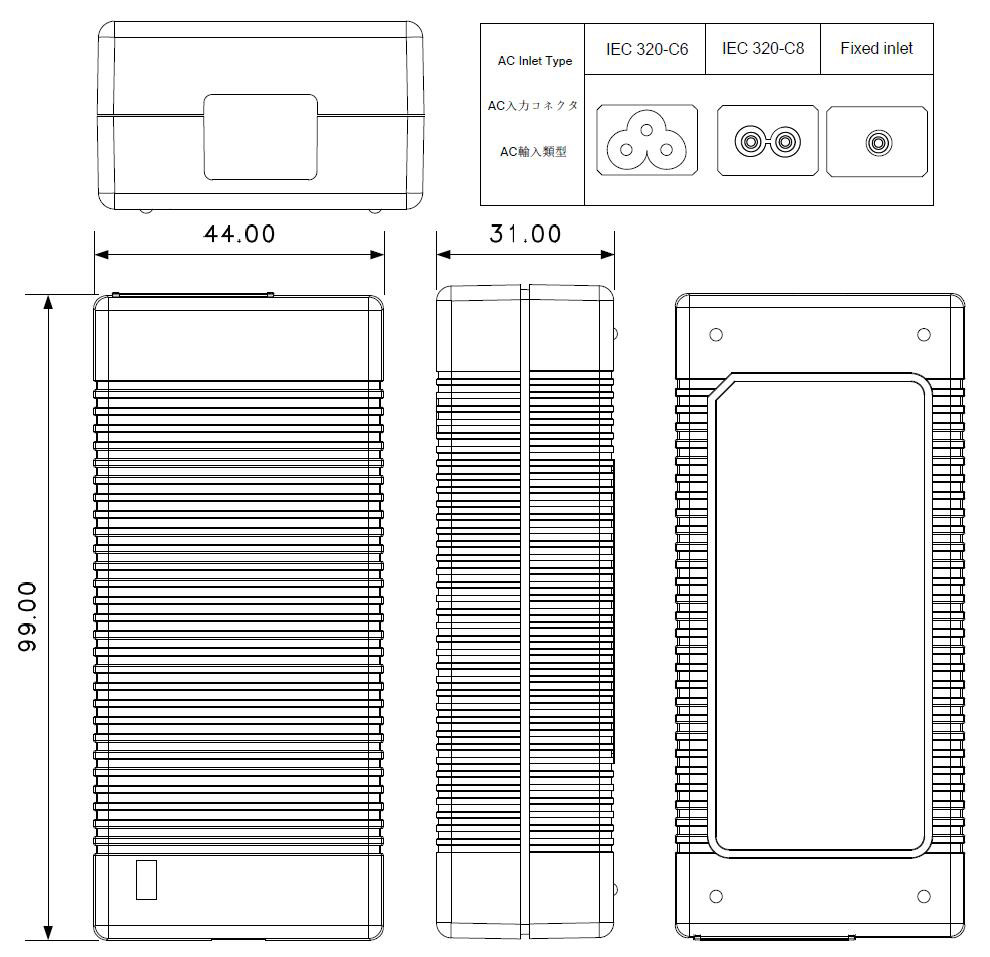

  • Drawing
  • Model List
  • Packing
UL/IEC 62368 AC Adaptor 24V 1.5A Transformer Switching Adapter Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 24V
Output voltage tolerance: 5%
Rated output current: 1.5A
Output current: 0～1.5A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
24V 1.5A Switching Adapter
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG2400300 100～240 7.2 24 300
XSG2400380 100～240 9.1 24 380
XSG2400400 100～240 9.6 24 400
XSG2400500 100～240 12.0 24 500
XSG2400600 100～240 14.4 24 600
XSG2400700 100～240 16.8 24 700
XSG2400800 100～240 19.2 24 800
XSG2400900 100～240 21.6 24 900
XSG2401000 100～240 24.0 24 1000
XSG2401200 100～240 28.8 24 1200
XSG2401250 100～240 30.0 24 1250
XSG2401500 100～240 36.0 24 1500
XSG2401750 100～240 42.0 24 1750
XSG2402000 100～240 48.0 24 2000
XSG2402100 100～240 50.4 24 2100
XSG2402500 100～240 60.0 24 2500
XSG2402700 100～240 64.8 24 2700
XSG2403000 100～240 72.0 24 3000
XSG2403250 100～240 78.0 24 3250
XSG2403500 100～240 84.0 24 3500
XSG2403750 100～240 90.0 24 3750
XSG2404000 100～240 96.0 24 4000
XSG2404500 100～240 108.0 24 4500
XSG2405000 100～240 120.0 24 5000
XSG2405500 100-240 132.0 24 5500
XSG2406000 100～240 144.0 24 6000
XSG2406250 100～240 150.0 24 6250
XSG2406500 100～240 156.0 24 6500
XSG2407000 100～240 168.0 24 7000
XSG2407500 100～240 180.0 24 7500
XSG2408000 100～240 192.0 24 8000
XSG2408330 100～240 199.9 24 8330
XSG2408500 100～240 204.0 24 8500

1PCS/BOX, 50BOX/CTN, CTN SIZE:315*310*370mm
0.32KG/BOX, TOTAL WEIGHT: 16KGS/CTN
