7.5V 0.5A DC POWER SUPPLY
XSG0750500

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

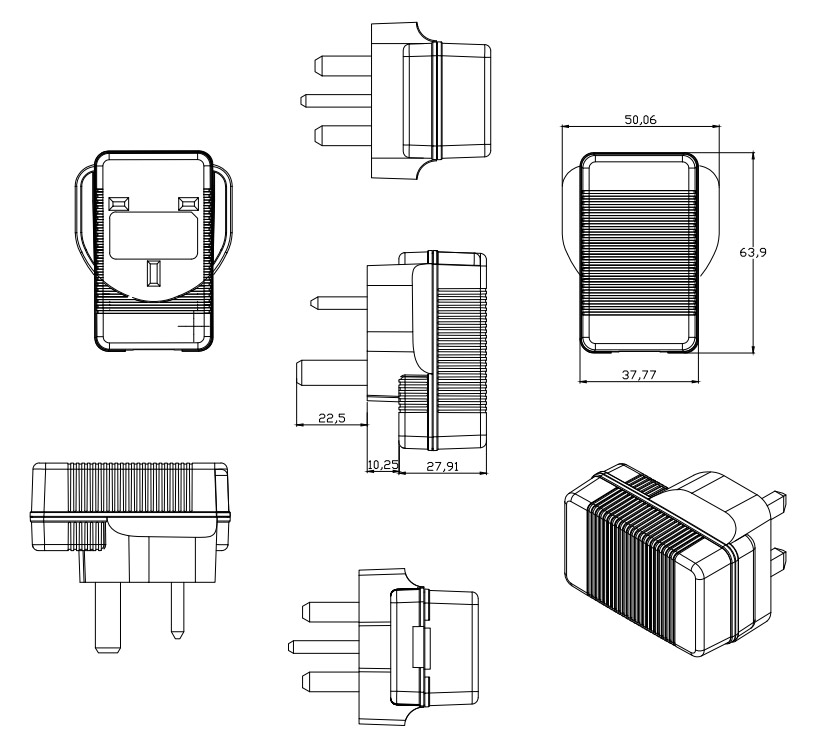

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >73.6%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 7.5V
Output voltage tolerance: 5%
Rated output current: 0.5A
Output current: 0～0.5A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
7.5V 0.5A DC POWER SUPPLY
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0750300 100～240 2.3 7.5 300
XSG0750400 100～240 3.0 7.5 400
XSG0750500 100～240 3.8 7.5 500
XSG0750600 100～240 4.5 7.5 600
XSG0750700 100～240 5.3 7.5 700
XSG0750800 100～240 6.0 7.5 800
XSG0750900 100～240 6.8 7.5 900
XSG0751000 100～240 7.5 7.5 1000
XSG0751500 100～240 11.3 7.5 1500
XSG0752000 100～240 15.0 7.5 2000
XSG0752500 100～240 18.8 7.5 2500
XSG0753000 100～240 22.5 7.5 3000
XSG0753500 100～240 26.3 7.5 3500
XSG0754000 100～240 30.0 7.5 4000
XSG0754500 100～240 33.8 7.5 4500
XSG0755000 100～240 37.5 7.5 5000
XSG0755500 100～240 41.3 7.5 5500
XSG0756000 100～240 45.0 7.5 6000
XSG0756500 100～240 48.8 7.5 6500
XSG0757000 100～240 52.5 7.5 7000
XSG0757500 100～240 56.3 7.5 7500
XSG0758000 100～240 60.0 7.5 8000
XSG0758500 100～240 63.8 7.5 8500
XSG0759000 100～240 67.5 7.5 9000
XSG0759500 100～240 71.3 7.5 9500
XSG07510000 100～240 75.0 7.5 10000
1PCS/BOX, 100BOX/CTN, CTN SIZE:460*330*295mm
0.3KG/BOX, TOTAL WEIGHT: 30KGS/CTN
