EN60335-2-29 52.2V 3.5A Lithium Ion Charger for Electric Outboard Engine Electric Motor DC Motor
XSG5223500

Power Adapter

Battery Charger

Update

12V 3A charger for Coil Cleaning System portable HVAC coil cleaners 2026.05.22
12V 1A power adapter charger for portable HVAC coil cleaners 2026.05.22
29.2V 2A waterproof IP65 IP67 Military Grade Field Training Target Charger 2026.05.18

Technical Data

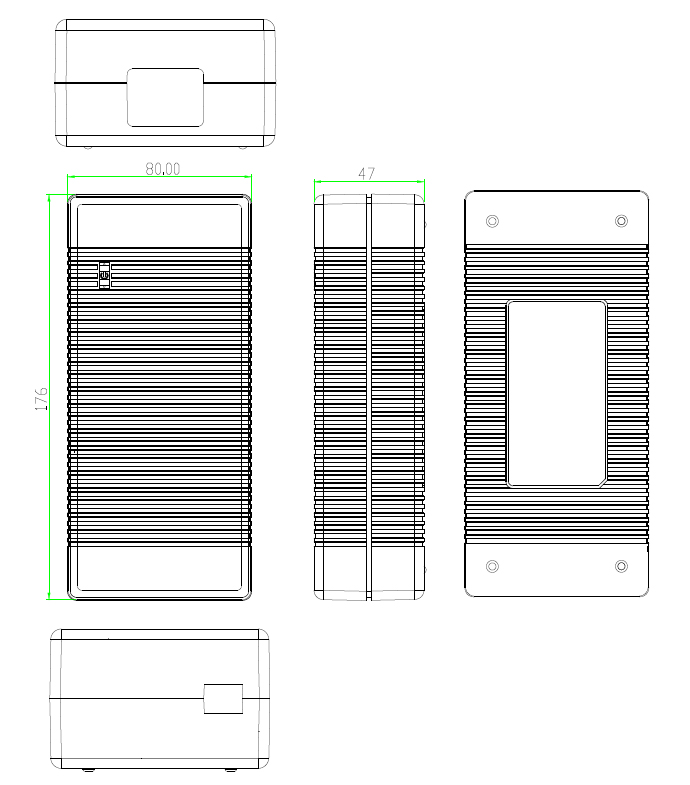

Drawing

Model List

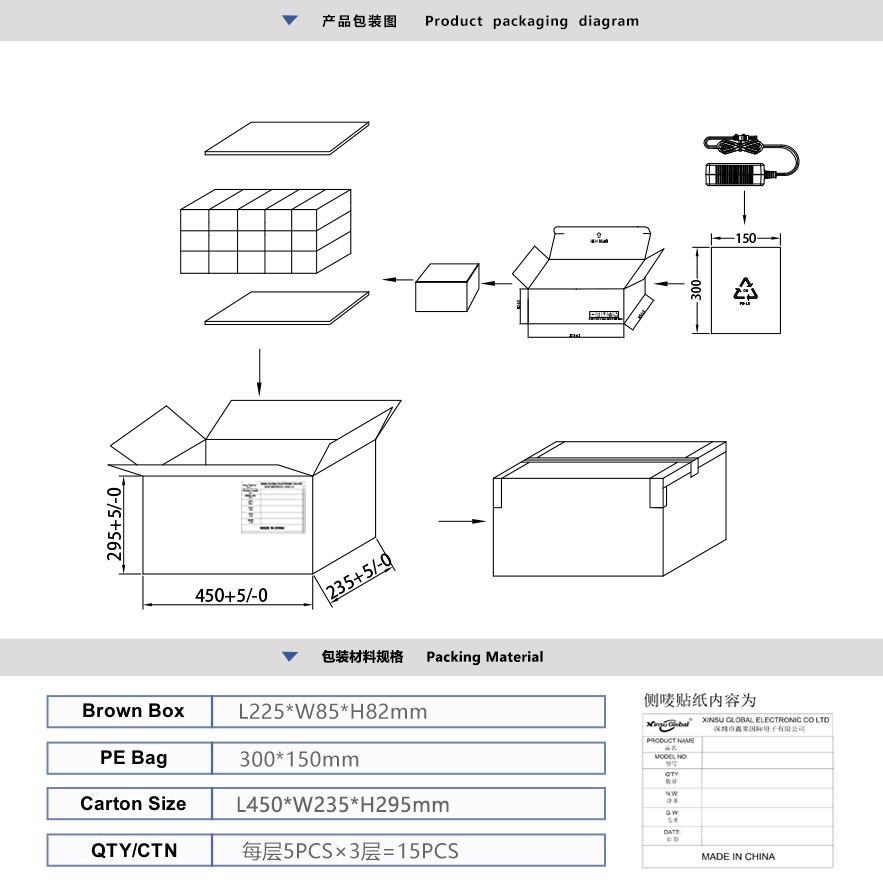

Packing

Electric Parameter
Electric Parameter
AC input	Input Voltage range:	90～264Vac
	Reted input voltage:	100～240Vac
	InputFrequency Range:	47～62hz
	Input current max:	3A
	Inrush current:	60A Max/240V
	Efficiency:	≥88%
	No load input power	≤0.21W
	Leakage current:	<0.25mA/240V
DC output	Output voltage:	52.2V
	Output voltage tolerance:	5%
	Rated output current:	3.5A
	Output current:	0～3.5A
	Ripple and noise:	<180mVp-p
	CV or CC	Optional
	Current limited:	Optional
	LED indicator	Green color
Protection	Over current protection	PASS
	Over voltage protection
	Short circuit protection
	Over Temp protection
Environment	Operating Temp:	0℃～+45℃
	Storage Temp:	-30℃～+70℃
	Relative Humidity:	10%～90%
	Vibration and shock	Meet MIL-STD-810D
Safety	Safety standard	EN62368,EN61558,EN60335,EN60335-2-29
	EMC/EMI	Meet FCC CLASS B,EN55022 CLASS B.
	EMS	EN61000－4－2
		EN61000－4－3
		EN61000－4－4
		EN61000－4－5
	A Harmonic source	Pass
	HI-pot: Primary to Secondary	3KVAC,5mA,60s
	Drop Test	As per UL regulation
	Burning test	100%,4-5 hours
Energy efficiency level		CEC level VI, Doe VI
Life	MTBF	50000 hours
Life	Warranty	2 years

MODEL	INPUT VAC	OUTPUT W	OUTPUT V	OUTPUT mA
XSG5040300	100～240	15.1	50.4	300
XSG5040400	100～240	20.2	50.4	400
XSG5040500	100～240	25.2	50.4	500
XSG5040600	100～240	30.2	50.4	600
XSG5040700	100～240	35.3	50.4	700
XSG5040800	100～240	40.3	50.4	800
XSG5040900	100～240	45.4	50.4	900
XSG5041000	100～240	50.4	50.4	1000
XSG5041250	100～240	63.0	50.4	1250
XSG5041500	100～240	75.6	50.4	1500
XSG5042000	100～240	100.8	50.4	2000
XSG5042500	100～240	126.0	50.4	2500
XSG5042750	100～240	138.6	50.4	2750
XSG5043000	100～240	151.2	50.4	3000
XSG5043500	100～240	176.4	50.4	3500
XSG5223500	100～240	182.7W	52.2	3500
XSG5228000	100～240	417.6	52.2	8000
