Xinsu Global Electronic Co., Limited

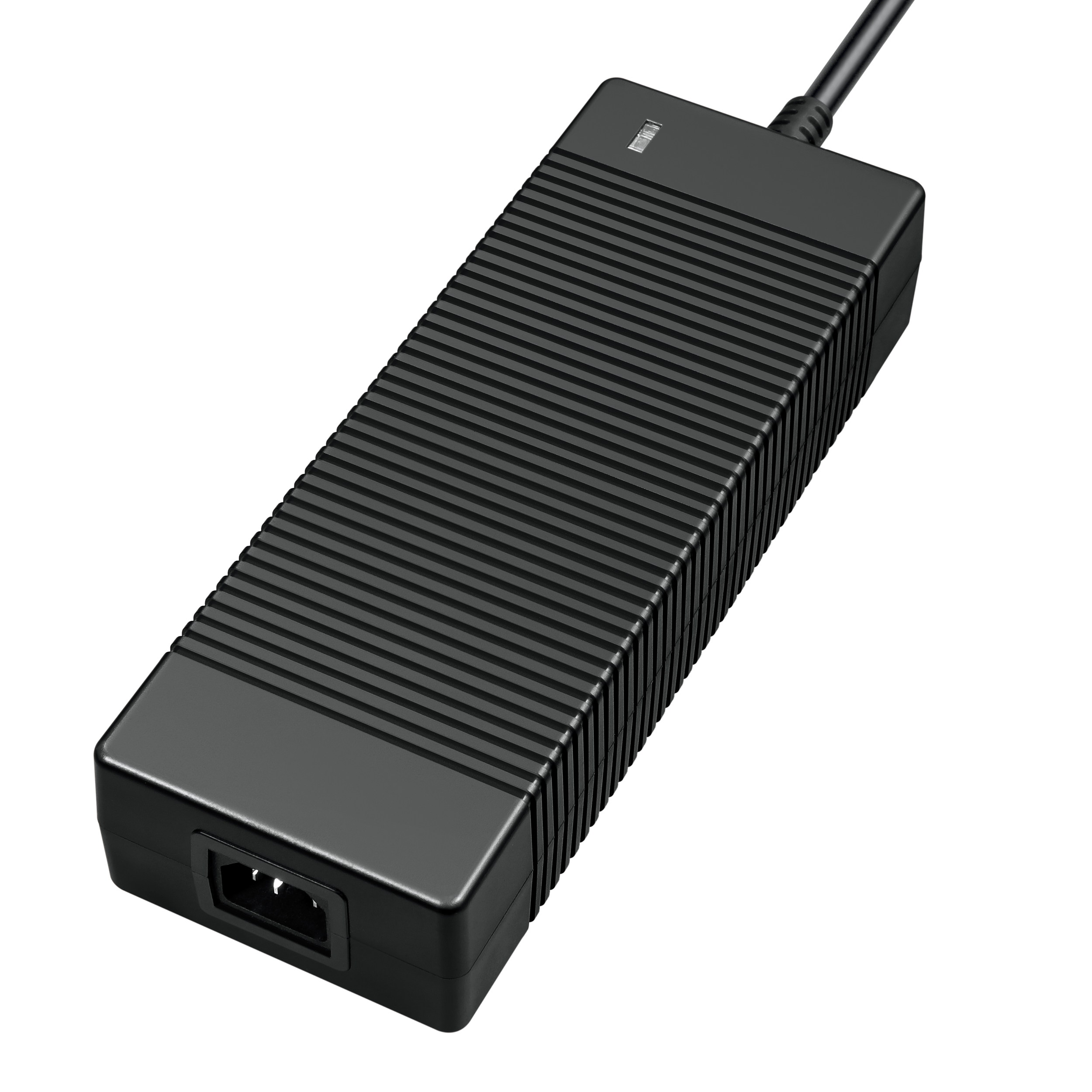

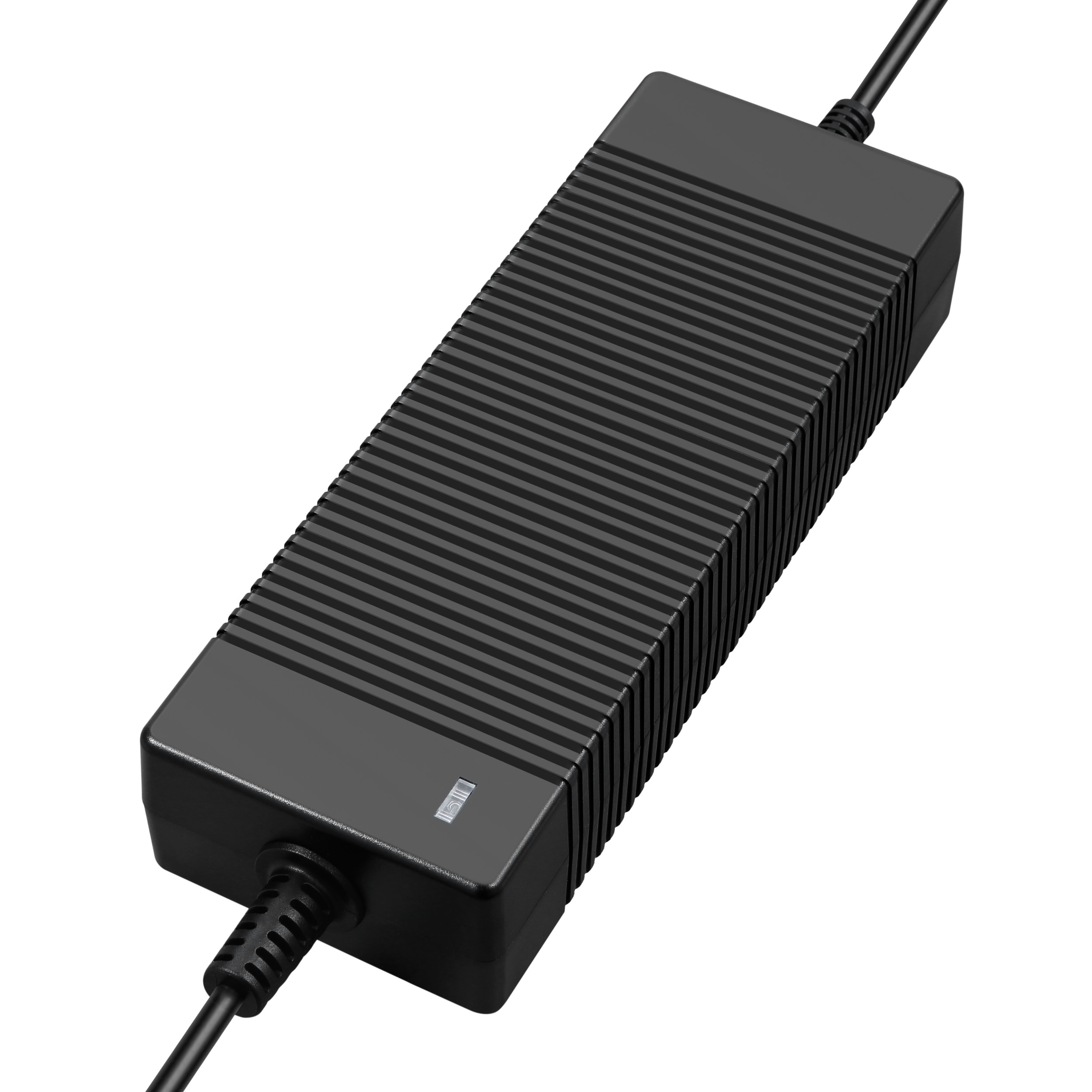

360W Desktop Adapter

Brand Xinsu global 360W series desktop adapter is a Fanless design, fully enclosed plastic case LED indicator for power on, desktop style single-output green switching power supplies and power adapters, AC input voltage 85-265V meets the global voltage range. The entire series supplies different models with output voltages ranging between 12VDC and 88VDC that can satisfy the demands for various types of consumer electronic devices, Telecommunication, Office facilities and Industrial equipment. The highlight is meet the Latest international safety standard IEC62368.( IEC62368 standard covers the information products (ITE) and audio-video (A/V) devices, including consumer electronics, musical instruments, office appliances, communication hardware, it will replace the current IEC60950 and IEC60065 standards in 2019. But we Xinsu global Electronic Co., LTD 220W series has already passed this IEC62368 standard!) Besides, Each adapter Built-in active PFC function, and certified for the international safety regulations which include CB, ETL/UL, TUV PSE, SAA, RCM, TUV LVD, EMC, FCC, C-tick, ICES and energy efficiency level VI standard.Covers the protections of Short circuit / Overload / over voltage / over temperature. EMI with very good peformance. Welcome to contact to know more details.

Features of 360W Series Desktop Adapter

  • Up to 360W
  • Designed in the USA, Made in China
  • Global Certificates.
  • Case Material: PC, SABIC brand
  • Fanless Design.
  • Active PFC
  • Fully sealed by ultrasonic welding.
  • Capacitor imported from Taiwan.
  • AC inlet: IEC320-C14 and Fixed inlet optional.
  • Protection: Over Load/Over Voltage/Over Current/Over Temp/Short-Circuit with MCU
  • LED indicator show work status
  • Meet Energy Efficiency VI, Comply with CEC VI, DOE VI.
  • Comply With The Newest Safety Standard: UL62368, EN62368, IEC62368.
  • Brand Power Cord and DC Wire matched our products.
  • Customized Label and DC connector.

Specification Sheet Download

Certifications

GS  Download-Certificate No.: Z1A171194747010;Standard:EN62368(EN62368=EN60950+EN60065);
Verify website: https://www.tuev-sued.de/product-testing/certificates.
CE&LVDDownload -Certificate No.: Z8A171194747011;Standard:EN62368(EN62368=EN60950+EN60065);
Verify website: https://www.tuev-sued.de/product-testing/certificates.
UL Download-Certificate No.:E481515;Standard:IEC62368(EN62368=EN60950+EN60065);
Verify website: www.UL.com
FCC Download-Report No.:4788121683-1;Standard:FCC Part 15 Subpart B.
Verify website: www.UL.com
CB Download-Certificate No.:SG PSB-OF-02586;Standard:IEC62368(EN62368=EN60950+EN60065);
Verify website: www.tuv.comhttps://www.tuev-sued.de/product-testing/certificates
CB  Download-Certificate No.:SG PSB-OF-02560;Standard:IEC60950;
Verify website: https://www.tuev-sued.de/product-testing/certificates
KC Download-Certificate No.: HU10934-18002A &HU10934-18003A;Standard: K 60950-1 (2011-12);
Verify website: http://www.ktc.re.kr
C-TICK Download-Certificate No.: 17AE07019A 001;Standard: AS/NZS CISPR 32:2015;
Verify website: www.anci.com
SAA Download-Certificate No.: SAA-172984-EA;Standard: AS/NZS60950:2015;
Verify website: www.saaapprovals.com.au.
RCMDownload-Certificate No.: POC17123654;Standard: AS/NZS 60950:2015 & SAA-172894-EA;
Verify website: https//equipment.erac.gov.au/Registration/EquipmentSearch.aspx?atn=public.
EMC TUV Download-Certificate No.:E8A 17 12 94747 013;Standard:EN55032:2015, EN55032:2012,
EN55024:2010/A1:2015, EN55024:2010, EN55020:2007/A12:2016,EN61000-3-2:2014, EN61000-3-3-2013.
Verify website: https://www.tuev-sued.de/product-testing/certificates.
