EN60335-2-29 Approved 54.6V 10A Li-ion Battery Charger with Fan for Outdoor Energy Storage Charging
XSG54610000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

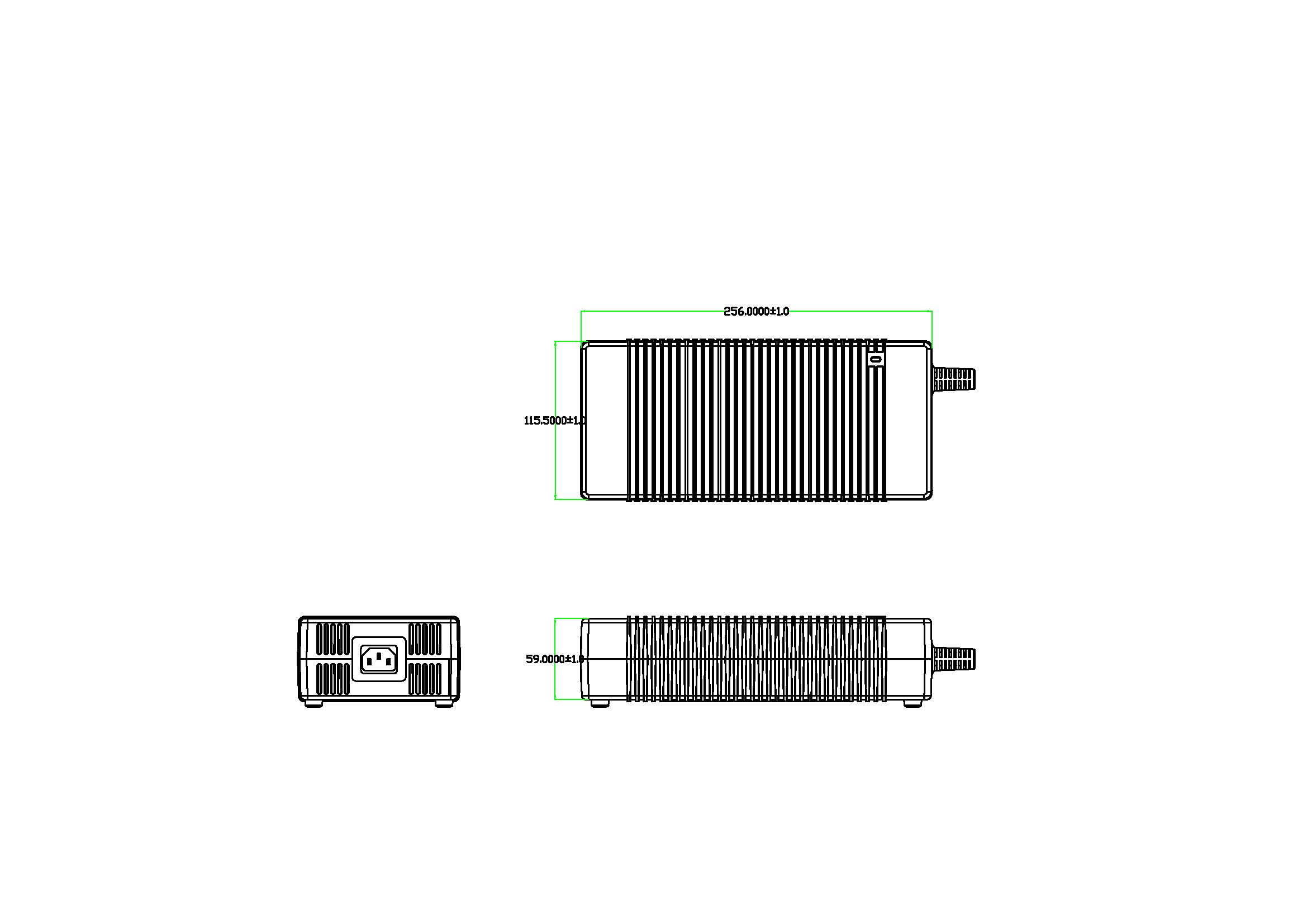

  • Drawing
  • Model List

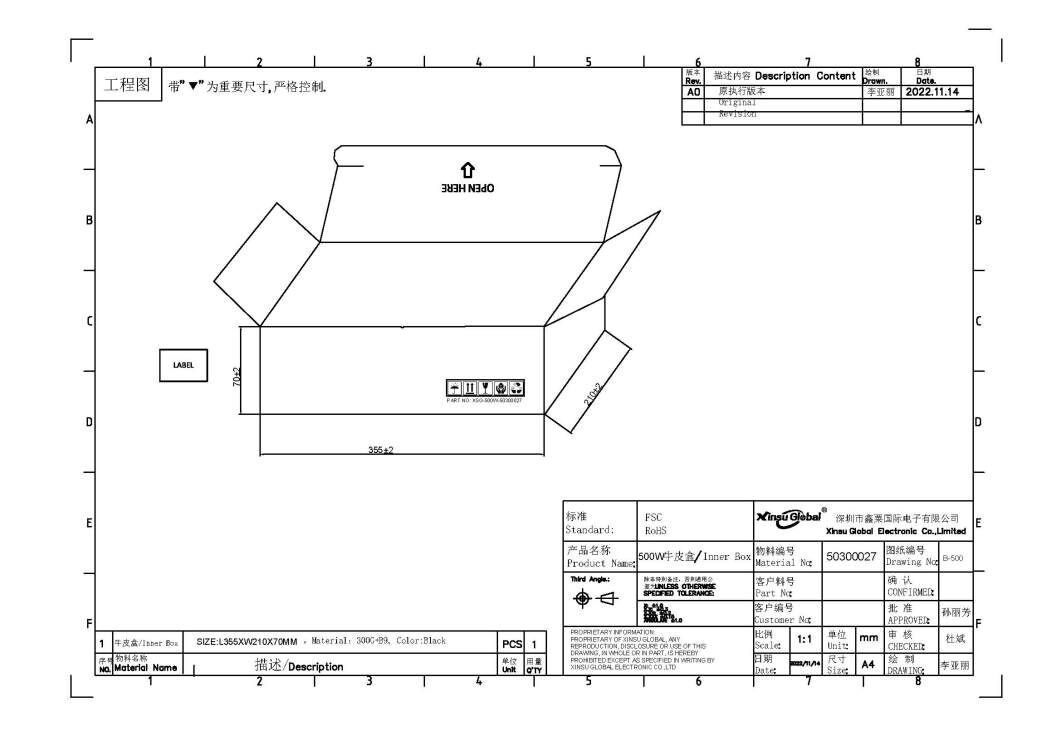

  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 10A
Inrush current: 170A Max/240V
Efficiency: ≥87.5%
No load Input power ≤0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 54.6V
Output voltage tolerance: 2%
Max charging current: 0～10A
Ripple and noise: ≤300mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 1A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335,EN60335-2-29
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 2 years

MODEL

INPUT VAC

OUTPUT W

OUTPUT V

OUTPUT mA

XSG5460300

100～240

16.4

54.6

300

XSG5460400

100～240

21.8

54.6

400

XSG5460500

100～240

27.3

54.6

500

XSG5460600

100～240

32.8

54.6

600

XSG5460700

100～240

38.2

54.6

700

XSG5460800

100～240

43.7

54.6

800

XSG5460900

100～240

49.1

54.6

900

XSG5461000

100～240

54.6

54.6

1000

XSG5461150

100～240

62.8

54.6

1150

XSG5461250

100～240

68.3

54.6

1250

XSG5461500

100～240

81.9

54.6

1500

XSG5461750

100～240

95.6

54.6

1750

XSG5462000

100～240

109.2

54.6

2000

XSG5462500

100～240

136.5

54.6

2500

XSG5462750

100～240

150.2

54.6

2750

XSG5463000

100～240

163.8

54.6

3000

XSG5463250

100～240

177.5

54.6

3250

XSG5463500

100～240

191.1

54.6

3500

XSG5463700

100～240

202.0

54.6

3700

XSG5463750

100～240

204.8

54.6

3750

XSG54610000

100～240

546

54.6

10000
