Xinsu Global Electronic Co., Limited

Electric Bike Lithium Battery Charger 58.8V 3.25A
XSG5883250

  • Technical Data

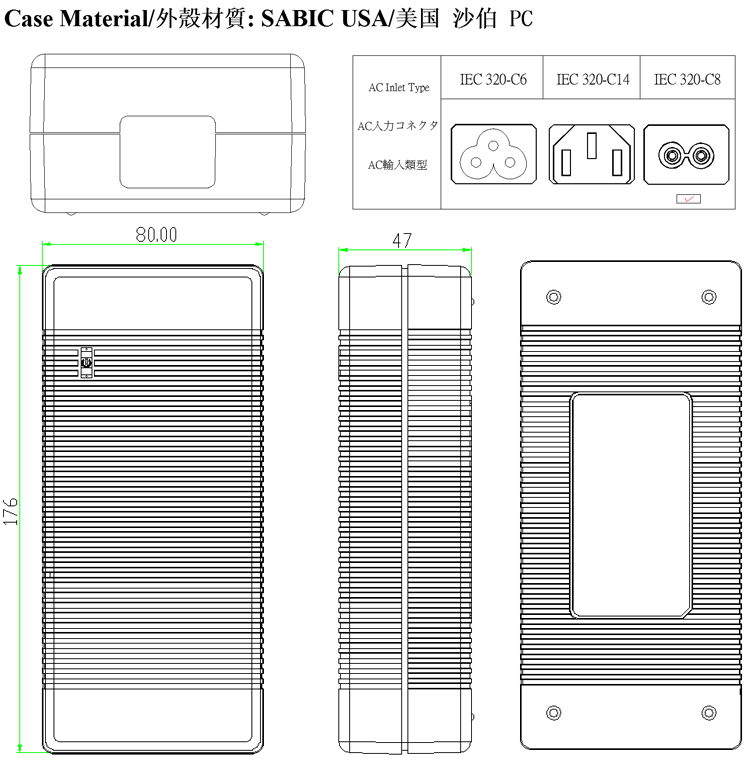

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 3A
Inrush current: 60A Max/240V
Efficiency: 87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 58.8V
Output voltage tolerance: 3%
Max charging current: 0~3.25A
Ripple and noise: ≤300mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.325A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
Electric Bike Lithium Battery Charger 58.8V 3.25A
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG5880300 100~240 17.6 58.8 300
XSG5880400 100~240 23.5 58.8 400
XSG5880500 100~240 29.4 58.8 500
XSG5880600 100~240 35.3 58.8 600
XSG5880700 100~240 41.2 58.8 700
XSG5880800 100~240 47.0 58.8 800
XSG5880900 100~240 52.9 58.8 900
XSG5881000 100~240 58.8 58.8 1000
XSG5881100 100~240 64.7 58.8 1100
XSG5881250 100~240 73.5 58.8 1250
XSG5881500 100~240 88.2 58.8 1500
XSG5881750 100~240 102.9 58.8 1750
XSG5882000 100~240 117.6 58.8 2000
XSG5882250 100~240 132.3 58.8 2250
XSG5882500 100~240 147.0 58.8 2500
XSG5882750 100~240 161.7 58.8 2750
XSG5883000 100~240 176.4 58.8 3000
XSG5883250 100~240 191.1 58.8 3250
XSG5883500 100~240 205.8 58.8 3500
