Xinsu Global Electronic Co., Limited

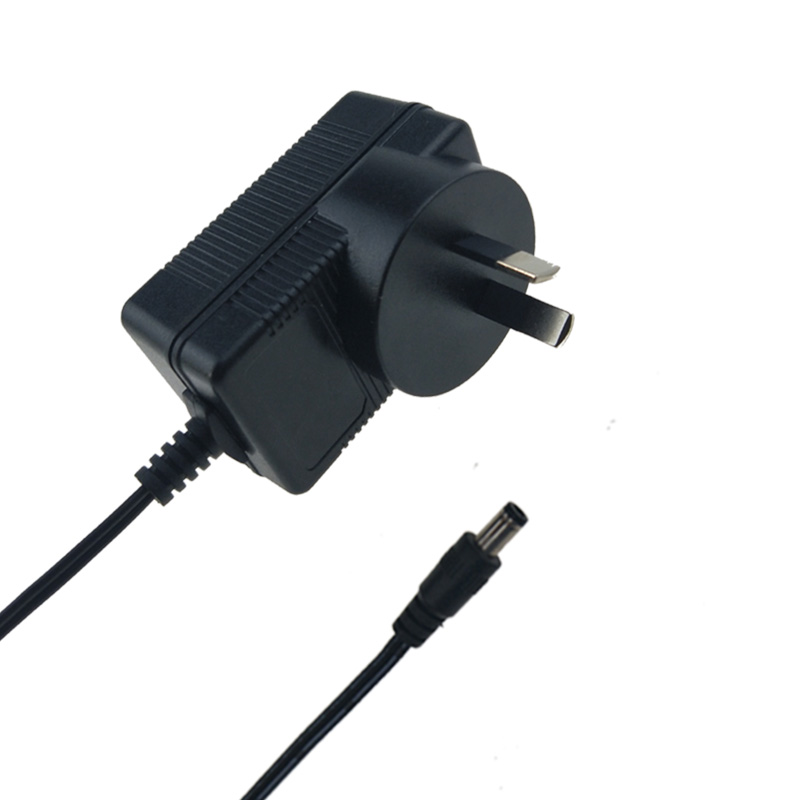

Electric Torch Charger 4.2V 0.5A Lithium Battery Charger
XSG0420500ZZ

  • Technical Data

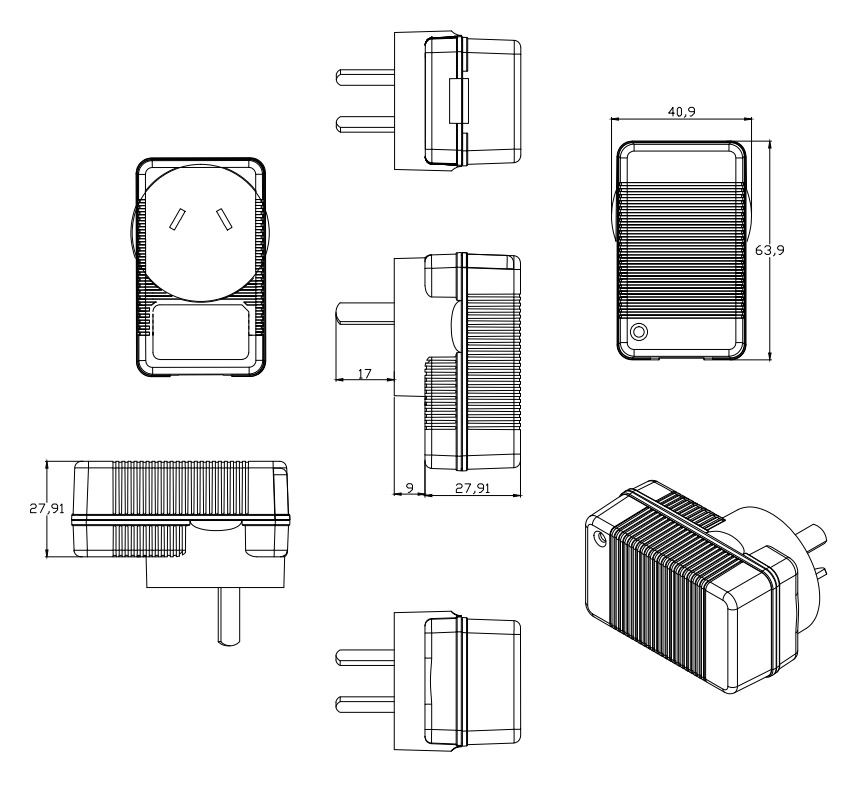

  • Drawing
  • Model List
  • Packing
Electric Torch Charger 4.2V 0.5A Lithium Battery Charger Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >66.85%
No load Input power <0.3W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 4.2V
Output voltage tolerance: 5%
Max charging current: 0~0.5A
Ripple and noise: <80mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Turn lamp current 0.1A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
Electric Torch Charger 4.2V 0.5A Lithium Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG0420300 100~240 1.3 4.2 300
XSG0420400 100~240 1.7 4.2 400
XSG0420500 100~240 2.1 4.2 500
XSG0420600 100~240 2.5 4.2 600
XSG0420700 100~240 2.9 4.2 700
XSG0420800 100~240 3.4 4.2 800
XSG0420900 100~240 3.8 4.2 900
XSG0421000 100~240 4.2 4.2 1000
XSG0421500 100~240 6.3 4.2 1500
XSG0422000 100~240 8.4 4.2 2000
XSG0422500 100~240 10.5 4.2 2500
XSG0423000 100~240 12.6 4.2 3000
XSG0423500 100~240 14.7 4.2 3500
XSG0424000 100~240 16.8 4.2 4000
XSG0424500 100~240 18.9 4.2 4500
XSG0425000 100~240 21.0 4.2 5000
XSG0426000 100~240 25.2 4.2 6000
XSG0426500 100~240 27.3 4.2 6500
XSG0427000 100~240 29.4 4.2 7000
XSG0427500 100~240 31.5 4.2 7500
XSG0428000 100~240 33.6 4.2 8000
XSG0428500 100~240 35.7 4.2 8500
XSG0429000 100~240 37.8 4.2 9000
XSG0429500 100~240 39.9 4.2 9500
XSG04210000 100~240 42.0 4.2 10000
