UL approved 12V 0.6A Power Adapter for LED driver
XSG1200600

  • Technical Data

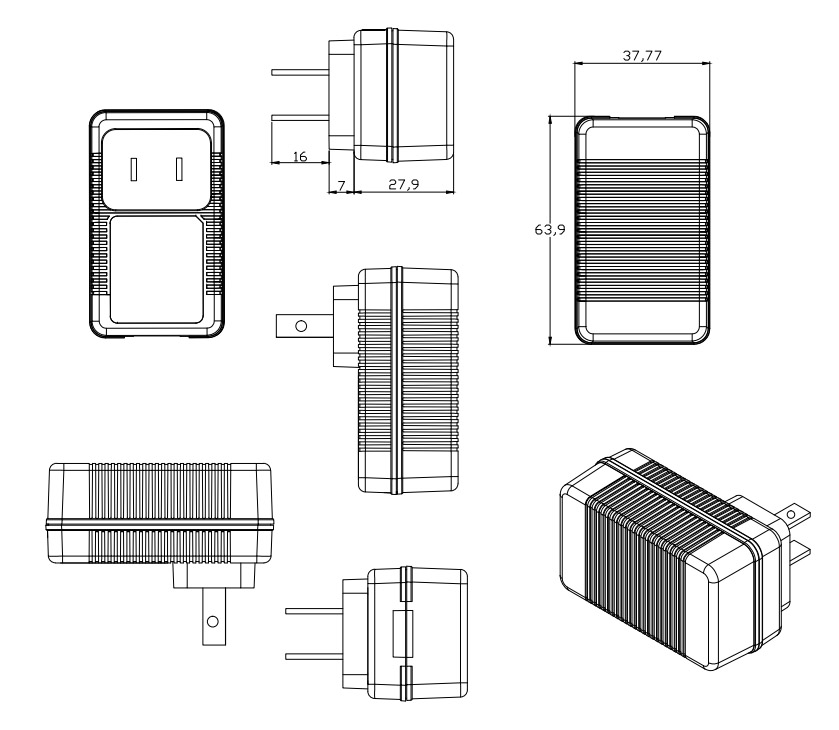

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >73.6%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 12V
Output voltage tolerance: 5%
Rated output current: 0.6A
Output current: 0~0.6A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years

ul approved 12v 0.6a power adapter for led driver
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1200300 100~240 3.6 12 300
XSG1200400 100~240 4.8 12 400
XSG1200500 100~240 6.0 12 500
XSG1200600 100~240 7.2 12 600
XSG1200700 100~240 8.4 12 700
XSG1200800 100~240 9.6 12 800
XSG1200900 100~240 10.8 12 900
XSG1201000 100~240 12.0 12 1000
XSG1201200 100~240 14.4 12 1200
XSG1201250 100~240 15.0 12 1250
XSG1201500 100~240 18.0 12 1500
XSG1201750 100~240 21.0 12 1750
XSG1202000 100~240 24.0 12 2000
XSG1202500 100~240 30.0 12 2500
XSG1203000 100~240 36.0 12 3000
XSG1203500 100~240 42.0 12 3500
XSG1204000 100~240 48.0 12 4000
XSG1204500 100~240 54.0 12 4500
XSG1205000 100~240 60.0 12 5000
XSG1205500 100~240 66.0 12 5500
XSG1206000 100~240 72.0 12 6000
XSG1206500 100~240 78.0 12 6500
XSG1207000 100~240 84.0 12 7000
XSG1207500 100~240 90.0 12 7500
XSG1208000 100~240 96.0 12 8000
XSG1208500 100~240 102.0 12 8500
XSG1209000 100~240 108.0 12 9000
XSG1209500 100~240 114.0 12 9500
XSG12010000 100~240 120.0 12 10000
XSG12011000 100~240 132.0 12 11000
1PCS/BOX, 100BOX/CTN, CTN SIZE:460*330*295mm
0.3KG/BOX, TOTAL WEIGHT: 30KGS/CTN
