ITE Power Supply EN62368-1 18V 3.6A Universal Power Adapter
XSG1803500

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

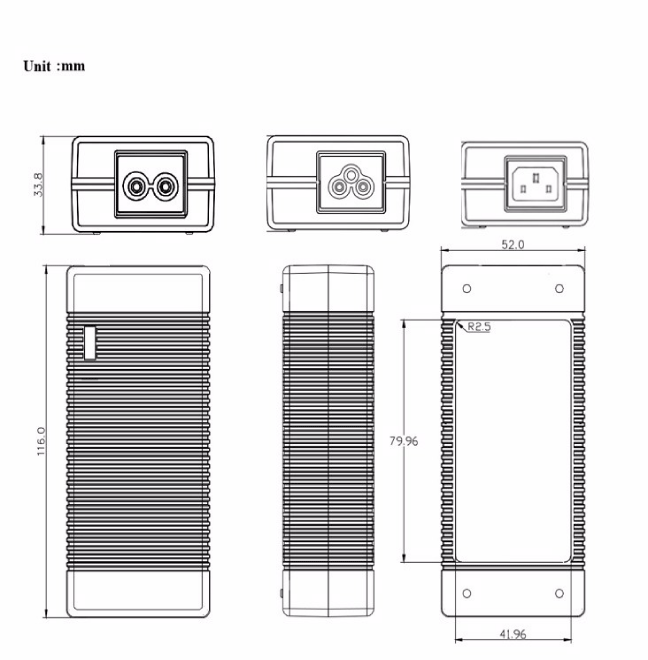

  • Drawing
  • Model List
  • Packing
ITE Power Supply EN62368-1 18V 3.6A Universal Power Adapter Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >88%
No load input power <0.21W
Leakage current: <0.25mA/240V
DC output Output voltage: 18V
Output voltage tolerance: 5%
Rated output current: 3.6A
Output current: 0～3.6A
Ripple and noise: <100mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
18V 3.6A Universal Power Adapter
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1800300 100～240 5.4 18 300
XSG1800400 100～240 7.2 18 400
XSG1800500 100～240 9.0 18 500
XSG1800600 100～240 10.8 18 600
XSG1800700 100～240 12.6 18 700
XSG1800800 100～240 14.4 18 800
XSG1800900 100～240 16.2 18 900
XSG1801000 100～240 18.0 18 1000
XSG1801200 100～240 21.6 18 1200
XSG1801500 100～240 27.0 18 1500
XSG1801750 100～240 31.5 18 1750
XSG1802000 100～240 36.0 18 2000
XSG1802200 100～240 39.6 18 2200
XSG1802500 100～240 45.0 18 2500
XSG1803000 100～240 54.0 18 3000
XSG1803300 100～240 59.4 18 3300
XSG1803500 100～240 63.0 18 3500
XSG1804000 100～240 72.0 18 4000
XSG1804500 100～240 81.0 18 4500
XSG1805000 100～240 90.0 18 5000
XSG1805500 100～240 99.0 18 5500
XSG1806000 100～240 108.0 18 6000
XSG1806500 100～240 117.0 18 6500
XSG1807000 100～240 126.0 18 7000
XSG1807500 100～240 135.0 18 7500
XSG1808000 100～240 144.0 18 8000
XSG1808500 100～240 153.0 18 8500
XSG1809000 100～240 162.0 18 9000
XSG1809500 100～240 171.0 18 9500

1PCS/BOX, 50BOX/CTN, CTN SIZE:430*380*350mm
0.25KG/BOX, TOTAL WEIGHT: 18KGS/CTN
