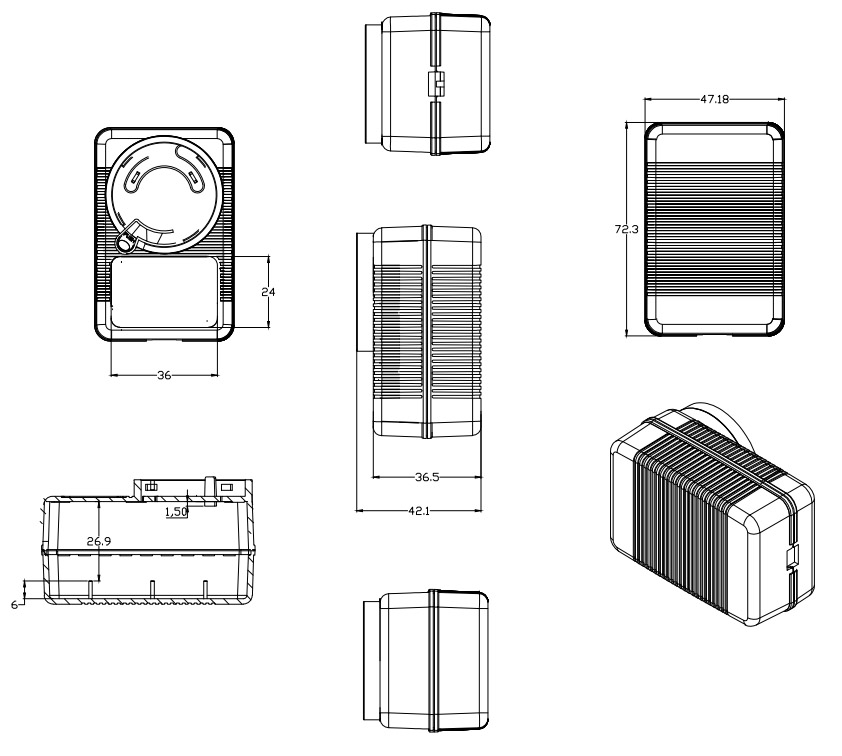

- Drawing
- Model List
- Packing
|
18W wall plug interchangeable power adapter 24V 750ma adaptor Electric
Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
0.6A
|
|
Inrush current:
|
35A Max/240V
|
|
Efficiency:
|
>85%
|
|
No load input power
|
<0.1W
|
|
Leakage current:
|
<0.25mA/240V
|
|
DC output
|
Output voltage:
|
24V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
0.75A
|
|
Output current:
|
0～0.75A
|
|
Ripple and noise:
|
<80mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current
protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS
B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG2400300
|
100～240
|
7.2
|
24
|
300
|
|
XSG2400380
|
100～240
|
9.1
|
24
|
380
|
|
XSG2400400
|
100～240
|
9.6
|
24
|
400
|
|
XSG2400500
|
100～240
|
12.0
|
24
|
500
|
|
XSG2400600
|
100～240
|
14.4
|
24
|
600
|
|
XSG2400700
|
100～240
|
16.8
|
24
|
700
|
|
XSG2400800
|
100～240
|
19.2
|
24
|
800
|
|
XSG2400900
|
100～240
|
21.6
|
24
|
900
|
|
XSG2401000
|
100～240
|
24.0
|
24
|
1000
|
|
XSG2401200
|
100～240
|
28.8
|
24
|
1200
|
|
XSG2401250
|
100～240
|
30.0
|
24
|
1250
|
|
XSG2401500
|
100～240
|
36.0
|
24
|
1500
|
|
XSG2401750
|
100～240
|
42.0
|
24
|
1750
|
|
XSG2402000
|
100～240
|
48.0
|
24
|
2000
|
|
XSG2402100
|
100～240
|
50.4
|
24
|
2100
|
|
XSG2402500
|
100～240
|
60.0
|
24
|
2500
|
|
XSG2402700
|
100～240
|
64.8
|
24
|
2700
|
|
XSG2403000
|
100～240
|
72.0
|
24
|
3000
|
|
XSG2403250
|
100～240
|
78.0
|
24
|
3250
|
|
XSG2403500
|
100～240
|
84.0
|
24
|
3500
|
|
XSG2403750
|
100～240
|
90.0
|
24
|
3750
|
|
XSG2404000
|
100～240
|
96.0
|
24
|
4000
|
|
XSG2404500
|
100～240
|
108.0
|
24
|
4500
|
|
XSG2405000
|
100～240
|
120.0
|
24
|
5000
|
|
XSG2405500
|
100-240
|
132.0
|
24
|
5500
|
|
XSG2406000
|
100～240
|
144.0
|
24
|
6000
|
|
XSG2406250
|
100～240
|
150.0
|
24
|
6250
|
|
XSG2406500
|
100～240
|
156.0
|
24
|
6500
|
|
XSG2407000
|
100～240
|
168.0
|
24
|
7000
|
|
XSG2407500
|
100～240
|
180.0
|
24
|
7500
|
|
XSG2408000
|
100～240
|
192.0
|
24
|
8000
|
|
XSG2408330
|
100～240
|
199.9
|
24
|
8330
|
|
XSG2408500
|
100～240
|
204.0
|
24
|
8500
|
