35V 6A Switching Power Supply
XSG3506000

  • Technical Data

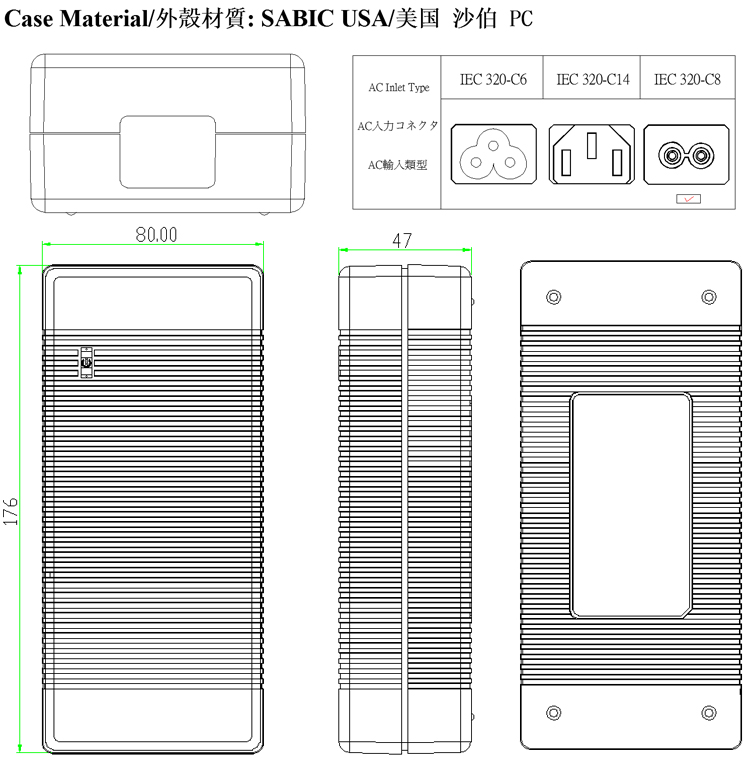

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 3A
Inrush current: 60A Max/240V
Efficiency: >88%
No load input power <0.21W
Leakage current: <0.25mA/240V
DC output Output voltage: 35V
Output voltage tolerance: 4%
Rated output current: 6A
Output current: 0~6A
Ripple and noise: <250mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
35V 6A Switching Power Supply
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG3500300 100~240 10.5 35 300
XSG3500400 100~240 14.0 35 400
XSG3500500 100~240 17.5 35 500
XSG3500600 100~240 21.0 35 600
XSG3500700 100~240 24.5 35 700
XSG3500800 100~240 28.0 35 800
XSG3500900 100~240 31.5 35 900
XSG3501000 100~240 35.0 35 1000
XSG3501500
100~240 52.5 35 1500
XSG3501800 100~240 63.0 35 1800
XSG3502000 100~240 70.0 35 2000
XSG3502500 100~240 87.5 35 2500
XSG3502750 100~240 96.3 35 2750
XSG3503000 100~240 105.0 35 3000
XSG3503250 100~240 113.8 35 3250
XSG3503500 100~240 122.5 35 3500
XSG3504000 100~240 140.0 35 4000
XSG3504500 100~240 157.5 35 4500
XSG3505000 100~240 175.0 35 5000
XSG3505500 100~240 192.5 35 5500
XSG3506000 100~240 210.0 35 6000
