17V 3.75A Ni-MH Battery Charger
XSG1703750

  • Technical Data

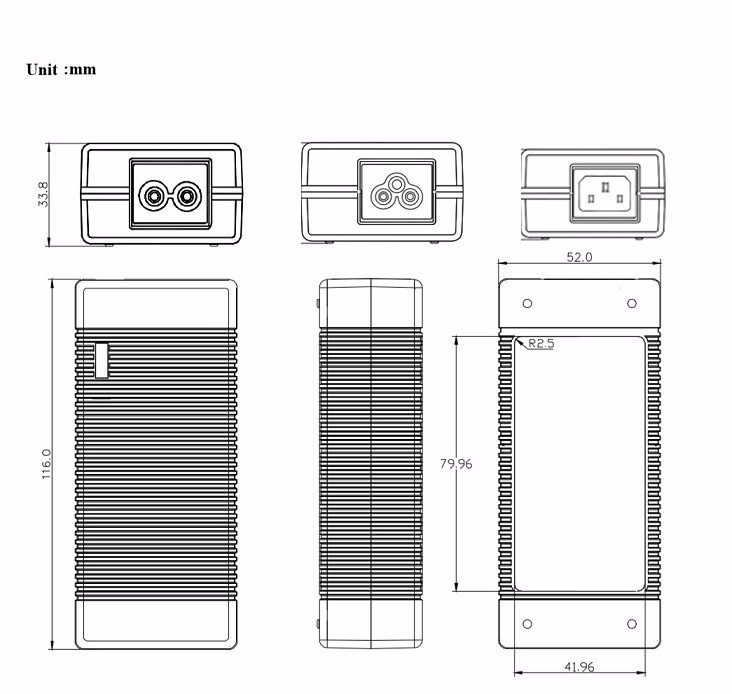

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 2.5A
Inrush current: 35A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 17V
Output voltage tolerance: 5%
Max charging current: 0~3.75A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 1.25A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
17V 3.75A Ni-MH Battery Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1700300 100~240 5.1 17 300
XSG1700400 100~240 6.8 17 400
XSG1700500 100~240 8.5 17 500
XSG1700600 100~240 10.2 17 600
XSG1700700 100~240 11.9 17 700
XSG1700800 100~240 13.6 17 800
XSG1700900 100~240 15.3 17 900
XSG1701000 100~240 17.0 17 1000
XSG1701500 100~240 25.5 17 1500
XSG1702000 100~240 34.0 17 2000
XSG1702500 100~240 42.5 17 2500
XSG1703000 100~240 51.0 17 3000
XSG1703500 100~240 59.5 17 3500
XSG1703750 100~240 63.8 17 3750
XSG1704000 100~240 68.0 17 4000
XSG1704500 100~240 76.5 17 4500
XSG1705000 100~240 85.0 17 5000
XSG1705500 100~240 93.5 17 5500
XSG1706000 100~240 102.0 17 6000
XSG1706500 100~240 110.5 17 6500
XSG1707000 100~240 119.0 17 7000
XSG1707500 100~240 127.5 17 7500
XSG1708000 100~240 136.0 17 8000
XSG1708500 100~240 144.5 17 8500
XSG1709000 100~240 153.0 17 9000
XSG1709500 100~240 161.5 17 9500
XSG17010000 100~240 170.0 17 10000
