46.2V 1A lithium battery charger with GS
XSG4621000

  • Technical Data

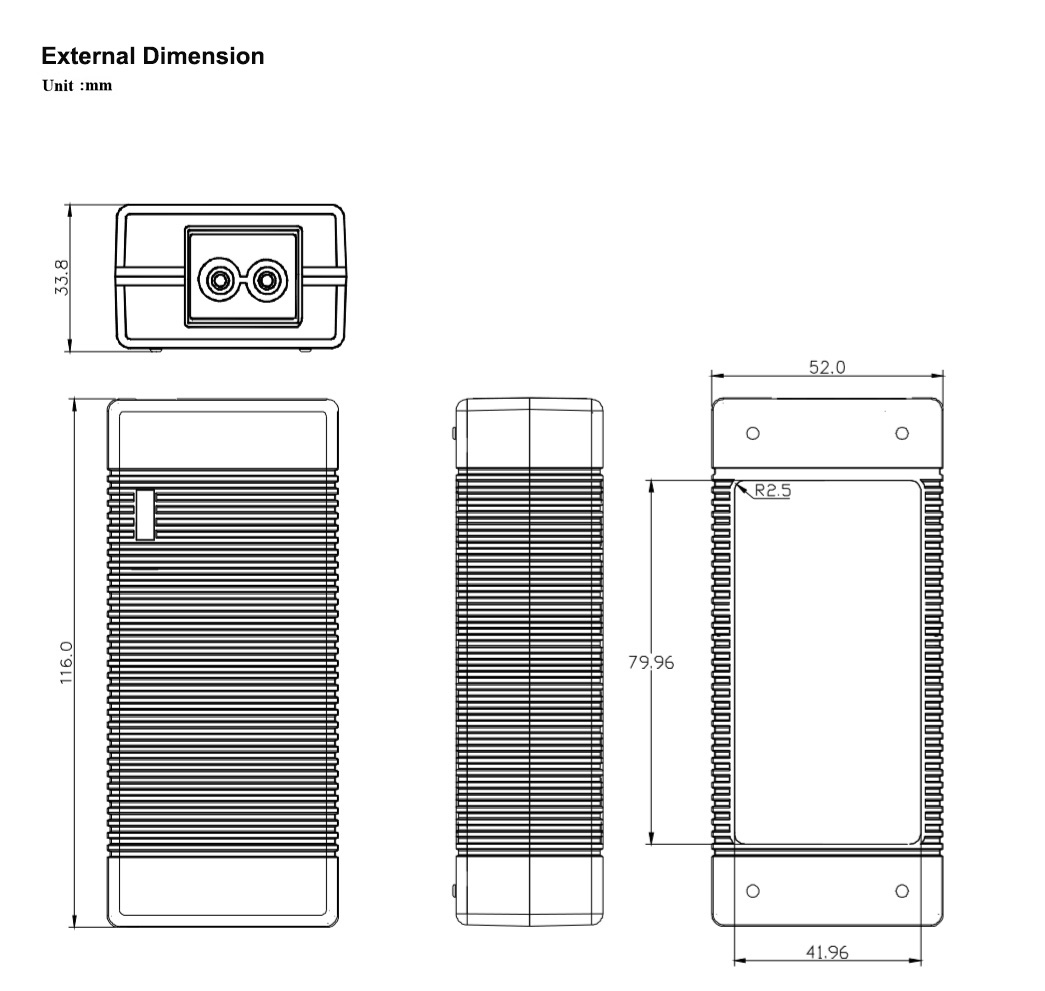

  • Drawing
  • Model List
  • Packing
    Electric Parameter
    AC input  Input Voltage range: 90~264Vac
    Reted input voltage: 100~240Vac
    InputFrequency Range: 47~62hz
    Input current max: 1.3A
    Inrush current: 35A Max/240V
    Efficiency: >86.19%
    No load Input power <0.3W
    Leakage current: <0.25mA/240V
    DC output Max charging voltage: 46.2V
    Output voltage tolerance: 5%
    Max charging current: 0~1A
    Ripple and noise: <100mVp-p
    Charging mode: 3- stage, CC,CV,trickle charging
    Cut off current when charged full Optional
    LED indicator Charging: Red, Charged full: Green
    Charging current when charged full 0.1A
    Protection Over current protection PASS
    Over voltage protection
    Short circuit protection
    Over Temp protection
    Anti-flow protection
    Environment Operating Temp: 0℃~+45℃
    Storage Temp: -30℃~+70℃
    Relative Humidity: 10%~90%
    Vibration and shock Meet MIL-STD-810D
    Safety Safety standard EN60950,EN61558,EN60335
    EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
    EMS EN61000-4-2
    EN61000-4-3
    EN61000-4-4
    EN61000-4-5
    A Harmonic source  Pass
    HI-pot: Primary to Secondary 3KVAC,5mA,60s
    Drop Test As per UL regulation
    Burning test 100%,4-5 hours
    Life MTBF 50000 hours
    Warranty 3 years

46.2V 1A lithium battery charger with GS
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG4620300 100~240 13.9 46.2 300
XSG4620400 100~240 18.5 46.2 400
XSG4620500 100~240 23.1 46.2 500
XSG4620600 100~240 27.7 46.2 600
XSG4620700 100~240 32.3 46.2 700
XSG4620800 100~240 37.0 46.2 800
XSG4620900 100~240 41.6 46.2 900
XSG4621000 100~240 46.2 46.2 1000
XSG4621250 100~240 57.8 46.2 1250
XSG4621400 100~240 64.7 46.2 1400
XSG4621500 100~240 69.3 46.2 1500
XSG4622000 100~240 92.4 46.2 2000
XSG4622500 100~240 115.5 46.2 2500
XSG4622750 100~240 127.1 46.2 2750
XSG4623000 100~240 138.6 46.2 3000
XSG4623500 100~240 161.7 46.2 3500
XSG4624000 100~240 184.8 46.2 4000
