Xinsu Global Electronic Co., Limited

Desktop 21V 4A Lithium Battery Charger With EN62368-1 Certified
XSG2104000

  • Technical Data

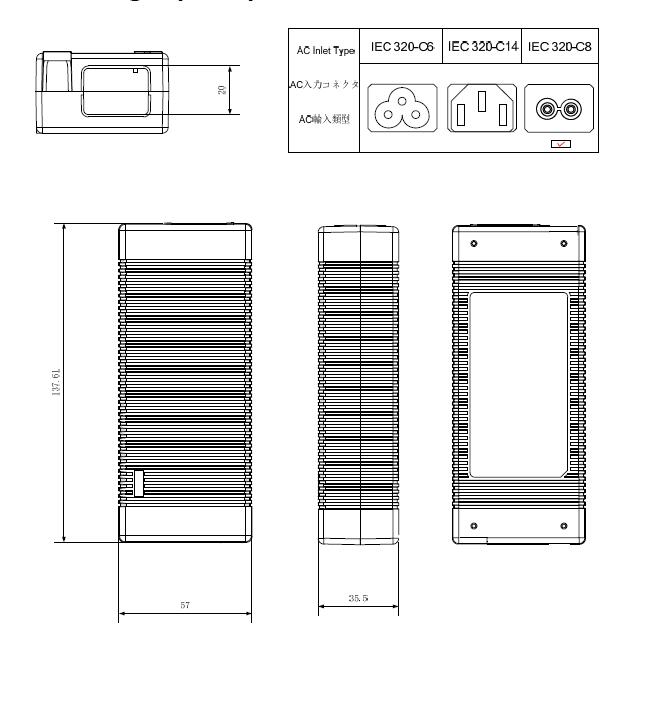

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 3A
Inrush current: 45A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.75mA/240V
DC output Max charging voltage: 21V
Output voltage tolerance: 5%
Max charging current: 0~4A
Ripple and noise: <180mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.4A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
Desktop 21V 4A Lithium Battery Charger With EN62368-1 Certified
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG2100300 100~240 6.3 21 300
XSG2100400 100~240 8.4 21 400
XSG2100500 100~240 10.5 21 500
XSG2100600 100~240 12.6 21 600
XSG2100700 100~240 14.7 21 700
XSG2100800 100~240 16.8 21 800
XSG2100900 100~240 18.9 21 900
XSG2101000 100~240 21.0 21 1000
XSG2101200 100~240 25.2 21 1200
XSG2101500 100~240 31.5 21 1500
XSG2101700 100~240 35.7 21 1700
XSG2102000 100~240 42.0 21 2000
XSG2102200 100~240 46.2 21 2200
XSG2102500 100~240 52.5 21 2500
XSG2103000 100~240 63.0 21 3000
XSG2103500 100~240 73.5 21 3500
XSG2104000 100~240 84.0 21 4000
XSG2104500 100~240 94.5 21 4500
XSG2105000 100~240 105.0 21 5000
XSG2105500 100-240 115.5 21 5500
XSG2106000 100~240 126.0 21 6000
XSG2106500 100~240 136.5 21 6500
XSG2107000 100~240 147.0 21 7000
XSG2107500 100~240 157.5 21 7500
XSG2108000 100~240 168.0 21 8000
XSG2108500 100~240 178.5 21 8500
XSG2109000 100~240 189.0 21 9000
