Dtap connector 16.8v 3.5a battery charger for video digital camera
XSG1683500

  • Technical Data

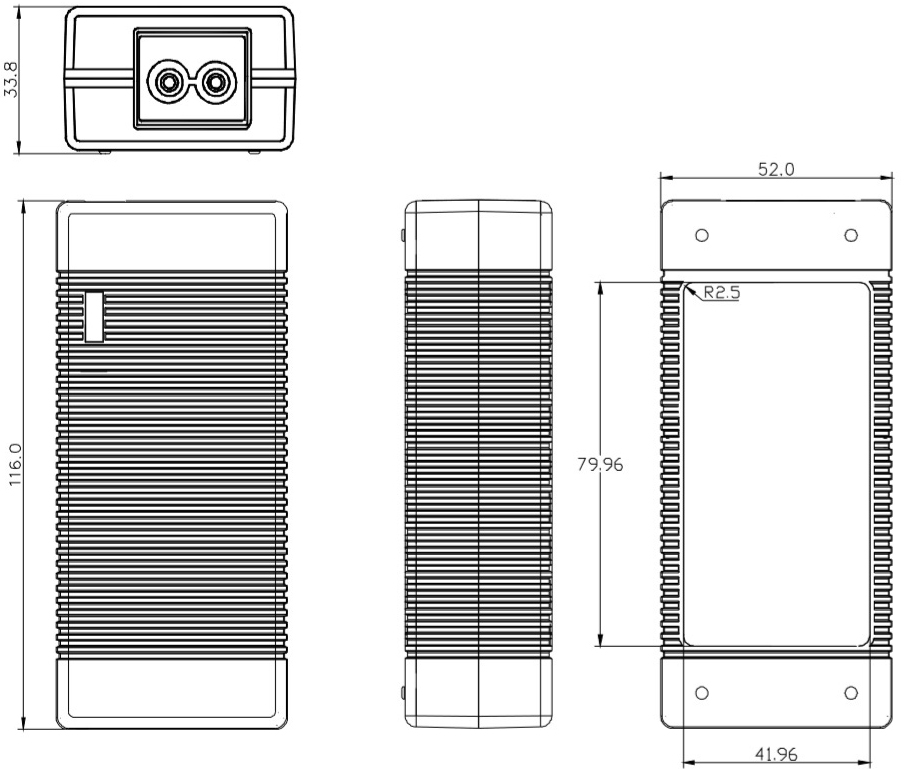

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 16.8V
Output voltage tolerance: 5%
Max charging current: 0~3.5A
Ripple and noise: <100mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.35A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
Dtap connector 16.8v 3.5a battery charger for video digital camera
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1680300 100~240 5.0 16.8 300
XSG1680400 100~240 6.7 16.8 400
XSG1680500 100~240 8.4 16.8 500
XSG1680600 100~240 10.1 16.8 600
XSG1680700 100~240 11.8 16.8 700
XSG1680800 100~240 13.4 16.8 800
XSG1680900 100~240 15.1 16.8 900
XSG1681000 100~240 16.8 16.8 1000
XSG1681200 100~240 20.2 16.8 1200
XSG1681500 100~240 25.2 16.8 1500
XSG1681800 100~240 30.2 16.8 1800
XSG1682000 100~240 33.6 16.8 2000
XSG1682500 100~240 42.0 16.8 2500
XSG1683000 100~240 50.4 16.8 3000
XSG1683500 100~240 58.8 16.8 3500
XSG1683750 100~240 63.0 16.8 3750
XSG1684000 100~240 67.2 16.8 4000
XSG1684500 100~240 75.6 16.8 4500
XSG1685000 100~240 84.0 16.8 5000
XSG1685500 100~240 92.4 16.8 5500
XSG1686000 100~240 100.8 16.8 6000
XSG1686500 100~240 109.2 16.8 6500
XSG1687000 100~240 117.6 16.8 7000
XSG1687500 100~240 126.0 16.8 7500
XSG1688000 100~240 134.4 16.8 8000
XSG1688500 100~240 142.8 16.8 8500
XSG1689000 100~240 151.2 16.8 9000
XSG1689500 100~240 159.6 16.8 9500
XSG16810000 100~240 168.0 16.8 10000
