Xinsu Global Electronic Co., Limited

EN62368-1 58V 0.5A Interchangeable Plug AC Adaptor
XSG5800500WW

  • Technical Data

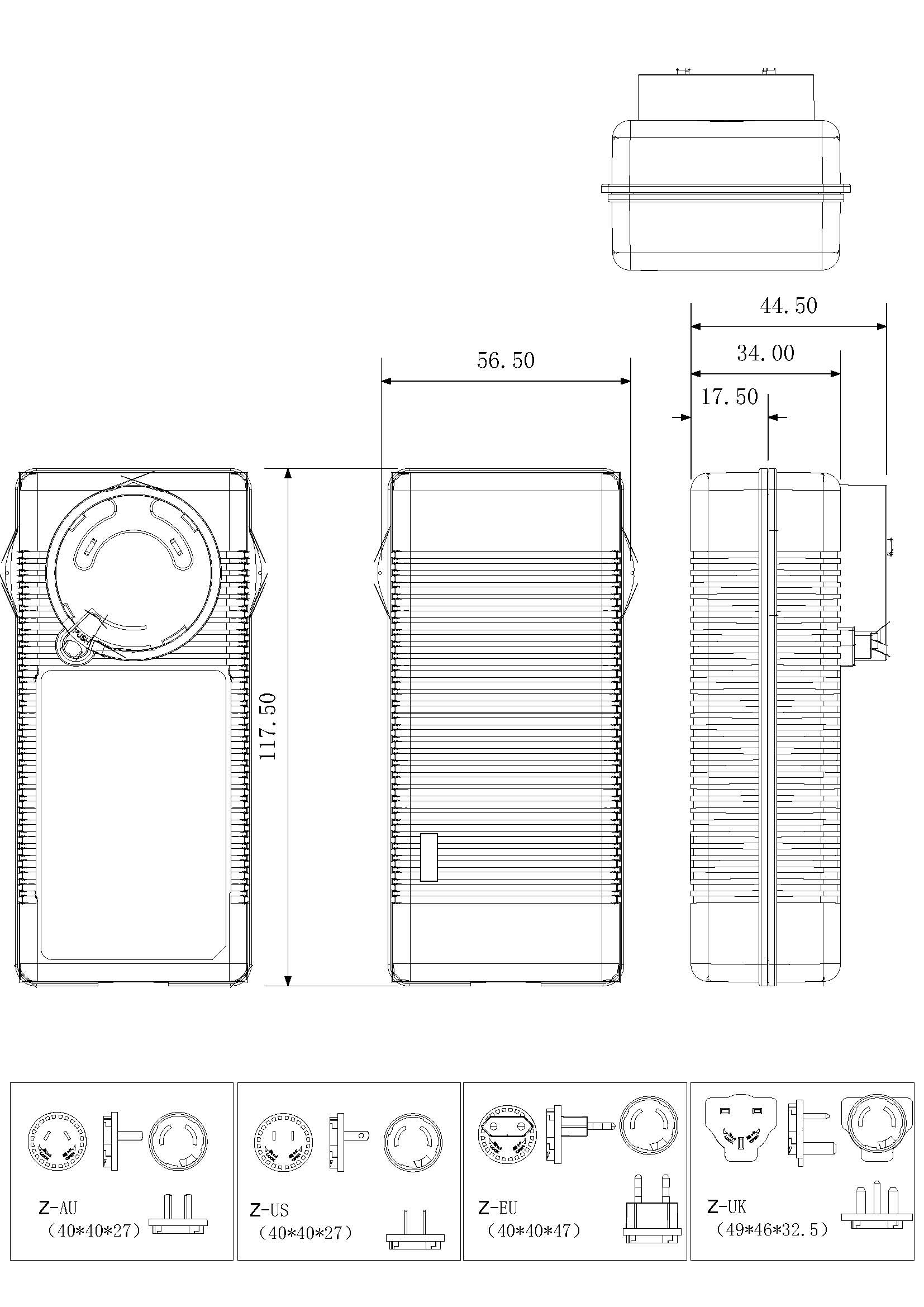

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >83%
No load input power <0.3W
Leakage current: <0.25mA/240V
DC output Output voltage: 58V
Output voltage tolerance: 5%
Rated output current: 0.5A
Output current: 0~0.5A
Ripple and noise: ≤180mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 2 years
EN62368-1 58V 0.5A Interchangeable Plug AC Adaptor
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG5800300 100~240 17.4 58 300
XSG5800400 100~240 23.2 58 400
XSG5800500 100~240 29.0 58 500
XSG5800600 100~240 34.8 58 600
XSG5800700 100~240 40.6 58 700
XSG5800800 100~240 46.4 58 800
XSG5800900 100~240 52.2 58 900
XSG5801000 100~240 58.0 58 1000
XSG5801100 100~240 63.8 58 1100
XSG5801250 100~240 72.5 58 1250
XSG5801500 100~240 87.0 58 1500
XSG5801750 100~240 101.5 58 1750
XSG5802000 100~240 116.0 58 2000
XSG5802250 100~240 130.5 58 2250
XSG5802500 100~240 145.0 58 2500
XSG5802750 100~240 159.5 58 2750
XSG5803000 100~240 174.0 58 3000
XSG5803250 100~240 188.5 58 3250
XSG5803500 100~240 203.0 58 3500
